Win7 64 USB speed problem

Topic

New Reply

Details of my pc.

OS: Win 7 Ultimate 64

Motherboard: Manufacturer ASUSTeK Computer INC.
Model M2N-MX (CPU 1)
Chipset Vendor NVIDIA
Chipset: nVidia nForce 6100-405/430
Chipset Model MCP61
Chipset Revision A2
Southbridge Vendor NVIDIA
Southbridge Model MCP61
Southbridge Revision A2
System Temperature 32 °C

BIOS: Brand American Megatrends Inc.
Version 0406
Date 15/01/2007

CPU: AMD Athlon 64 X2 3800+

Recently, I had inserted a external drive (I have two of the same externals, one is always plugged in) and it wouldn’t find the right driver (which is strange, like I said, I have two of the same drives LOL), anyways.. on to what I have done…
Someone told me to uninstall all USB in device manager, and let windows reboot and it should fix the problem.
Well ever since then I have had anything plugging in pretty much telling me “device can perform faster”, which I NEVER had at all ever before on this PC.
I have OpenHCD and Enhanced.
I would like to disable OpenHCD so everything MUST use the enhanced (which is 2.0)
I found this thread, and thought I would give it a go
http://windowssecrets.com/forums/showthread//158231-How-to-disable-USB-1-1-ports

I tried the option there… disabling legacy support… and well booted up, PC then told me it needed to run start up repair etc. So I closed down, started up, into bios again and enabled legacy, booted fine.

I have tried updating my bios. But mobo doesn’t have ezyflash, and not recognize afudos and having it on flash drive, and pressing alt + f2, I get “cable not connected” on monitor. and nothing else.

Any help would be greatly appreciated. Cheers.
1.1 speeds is killing me… 3 hrs or more to transfer a 1gb file… is making pull my hair out.

Reply | Quote

Replies

http://windowssecrets.com/forums/showthread//158231-How-to-disable-USB-1-1-ports

I tried the option there… disabling legacy support… and well booted up, PC then told me it needed to run start up repair etc. So I closed down, started up, into bios again and enabled legacy, booted fine.

Have you also looked into this?
http://windowssecrets.com/forums/showthread//158231-How-to-disable-USB-1-1-ports?p=932683&viewfull=1#post932683

I have never done that myself, but it seems to be what solved the other guy’s problem.

Reply | Quote

I know which hub and such is what, and what goes where… been hunting a fair bit and looking a fair bit.
Sometimes the external shows with the other ones, on the enhanced.

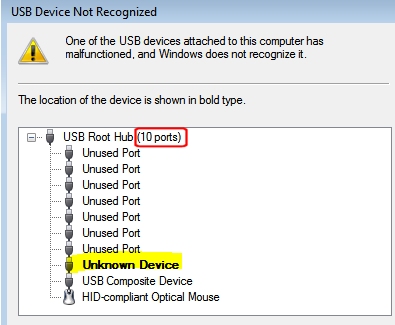

Othertimes it goes on the openhcd, and then I get the “your device can perform faster”

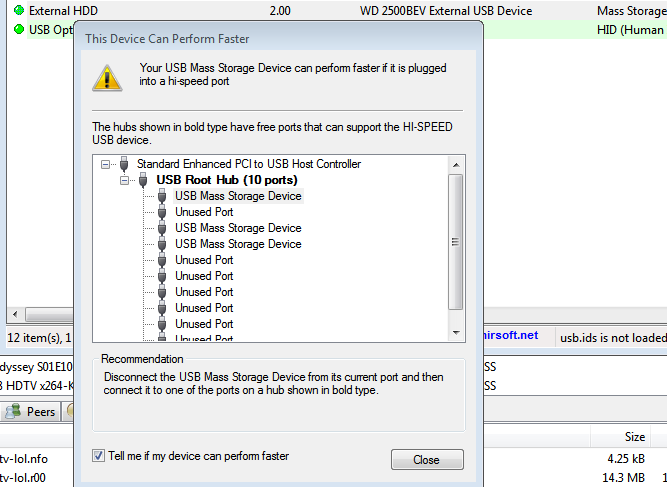

http://prntscr.com/3hwl1r <=– thats what I see when it happens

I would like to know how to force them onto the other SPARE bold ports… but have no idea how to.

I have tried to "disable" the actual openhcd AND usb root hub itself
http://prntscr.com/3hwlnf
BUT, its greyed out..
am kinda lost with this stuff.

Reply | Quote

I have tried updating my bios. But mobo doesn’t have ezyflash, and not recognize afudos and having it on flash drive, and pressing alt + f2, I get “cable not connected” on monitor. and nothing else.

The Asus site for the M2N-MX mainboard shows your BIOS is really out of date (and that the latest supported OS is Vista 32/64bit). I was actually looking for a chipset driver for Win 7 x64 but no Win 7 drivers/utilities are available there. I checked the Nvidia site but, again, the latest chipset driver for the Nvidia 430/6100 is for Vista 32/64bit.

36971-nvidia
Click to enlarge

Just a thought… the mainboard manual shows that Asus EZ Flash is only available when the mainboard is connected to VGA/RGB output. I don’t suppose you’ve added a graphics card to the PCI Express x16 slot and are using that instead of the onboard VGA port (hence “cable not connected” on monitor)?

Alternatively, do you have the mainboard support CD? If so, try using the Asus Update utility to update the BIOS from within Windows (and re-install any chipset driver if it supports Win 7 x64).

Does your USB configuration in the BIOS look this:
36970-asus-USB
Click to enlarge

If the controller mode is set to Full Speed instead of HiSpeed then you’ll only 12 Mbps (similar to USB 1.1), not 480 Mbps.

I’m not too sure what else to suggest as you have already tried un-installing the USB ports and hubs then re-booting… which usually fixes this type of issue.

Hope this helps…

Reply | Quote

https://vip.asus.com/forum/view.aspx?id=20091204151118578&board_id=1&model=M2N-MX&page=1&SLanguage=en-us
That there has the win7 drivers…
and also…
http://support.asus.com/download.aspx?SLanguage=en&m=Tools&os=17
http://prntscr.com/3i2xk8

BUT, when I try to install for eg the ATK and update it….

The drivers for this device are not installed. (Code 28)

The installation of this device is forbidden by system policy. Contact your system administrator.

To find a driver for this device, click Update Driver.

I don’t have the mainboard cd no, as I got this PC secondhand, and then added psu out of old pc, and soundcard and gfx card.

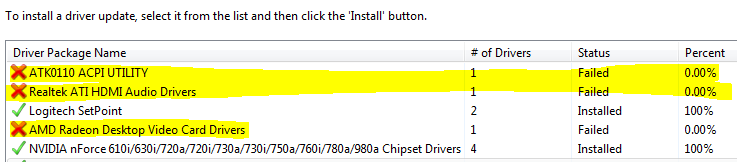

36975-4fxcEurD

I have been told to go into bios and turn ezyflash 2 on (cos it not support afudos), and will this is my bios view as it is now…
36976-VMDdqm84

“I don’t suppose you’ve added a graphics card to the PCI Express x16 slot and are using that instead of the onboard VGA port (hence “cable not connected” on monitor)?”
Yeah, am using hdmi to my monitor.
You think if I get a old vga to vga and plug it from mobo to pc, that should allow me to update bios?

I still have the M2NX0907.ROM renamed to 0907.ROM (For any BIOS update I wouldn’t go any higher then M2NX0907, there is one newer bios for that board but only adds support for some newer CPU’s and if you don’t have an issue with CPU warnings then I would avoid that one like the plague as it adds a function that will not allow you to revert back to an older BIOS.)

So change to vga to vga. Put the usb in, restart press alt+f2 and bios should start updating.
Is there a way to save this one?

Thanx for the help guys.

What really has me stumped is… it was all working fine and dandy, until I was told to remove all the usb stuff from device manager.. that means without bios update etc- which scares the crap outta me LOL)

Reply | Quote

https://vip.asus.com/forum/view.aspx?id=20091204151118578&board_id=1&model=M2N-MX&page=1&SLanguage=en-us
That there has the win7 drivers…

This link to the Asus Support site shows a link to Nforce drivers for Win 7 x64. Did you use this to download and install the Nforce driver, leading to this screenshot?

36975-4fxcEurD

If so then the last line in the screenshot shows successful installation of a chipset driver (nVidia nForce 610i, which I assume is another name for the 6100-405/430).

The link also shows a link to ASUS Update but the link appears broken. However, see below.

and also…
http://support.asus.com/download.aspx?SLanguage=en&m=Tools&os=17
http://prntscr.com/3i2xk8

This link is to drivers for Windows XP. If you change the dropdown from WinXP to Windows 7 64-bit then the display shows no drivers (but does show ASUS Update V7.18.02 for Windows 32/64bit XP & 32/64bit Vista& 32/64bit 7 so you could use this to update the BIOS from within Windows).

BUT, when I try to install for eg the ATK and update it….

I’m not sure what ATK is but it looks like a virtual device and the link is for power management (ATK ACPI) so I’m not clear why you would want to try and install it.

I have been told to go into bios and turn ezyflash 2 on (cos it not support afudos), and will this is my bios view as it is now…
36976-VMDdqm84

Click on the Advanced tab (in the BIOS) then select USB Configuration and post a screenshot.

”I don’t suppose you’ve added a graphics card to the PCI Express x16 slot and are using that instead of the onboard VGA port (hence “cable not connected” on monitor)?”
Yeah, am using hdmi to my monitor.
You think if I get a old vga to vga and plug it from mobo to pc, that should allow me to update bios?

Yes, this may work if you have a floppy disk drive… but see my comment about downloading ASUS Update V7.18.02 for Windows 32/64bit XP & 32/64bit Vista& 32/64bit 7 to update the BIOS from within Windows.

So change to vga to vga. Put the usb in, restart press alt+f2 and bios should start updating.
Is there a way to save this one?

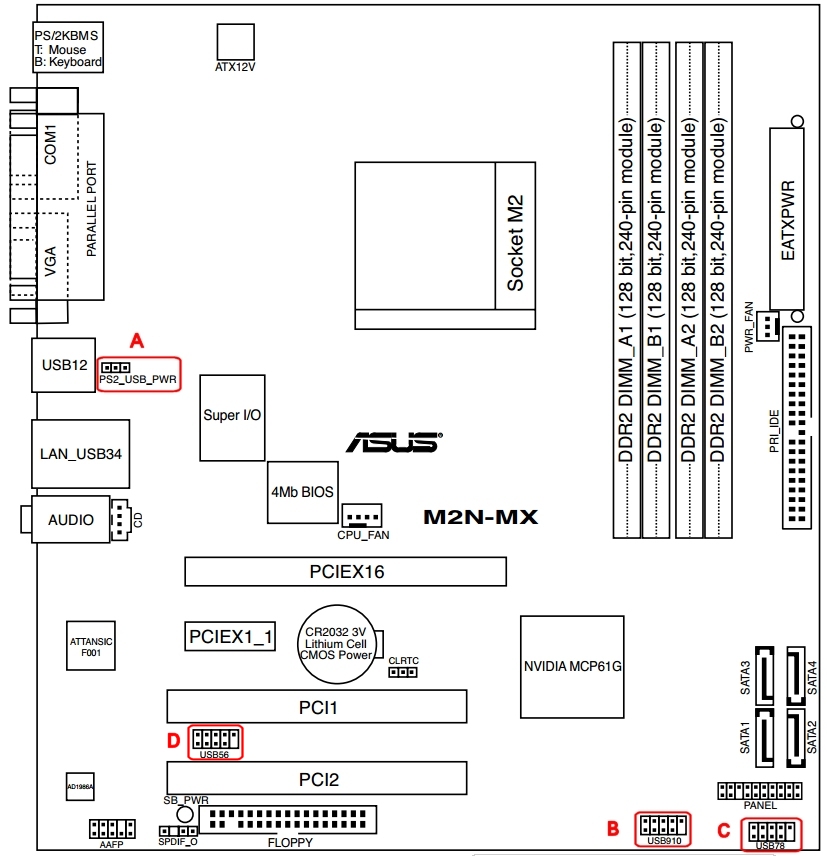

The manual for your mainboard (see Version E3548 – M2N-MX user’s manual(English)) shows that the built-in EZ Flash BIOS utility expects the new BIOS to be on a floppy disk, not a USB stick. The ASUS Update utility (section 2.1.5) works from within Windows and allows you to save the current version of the BIOS.

What really has me stumped is… it was all working fine and dandy, until I was told to remove all the usb stuff from device manager.. that means without bios update etc- which scares the crap outta me LOL)

This IS the usual way of resolving these types of issues and may be worth doing again after we’ve checked that the USB configuration in the BIOS is correct and that there are no issues in Device Manager.

To summarise, I think the best way to proceed is:
1. Check current USB Configuration in the BIOS (Advanced tab > USB Configuration) and post screenshot.
2. Download and install ASUS Update (but only if you’re determined to be able to update the BIOS).

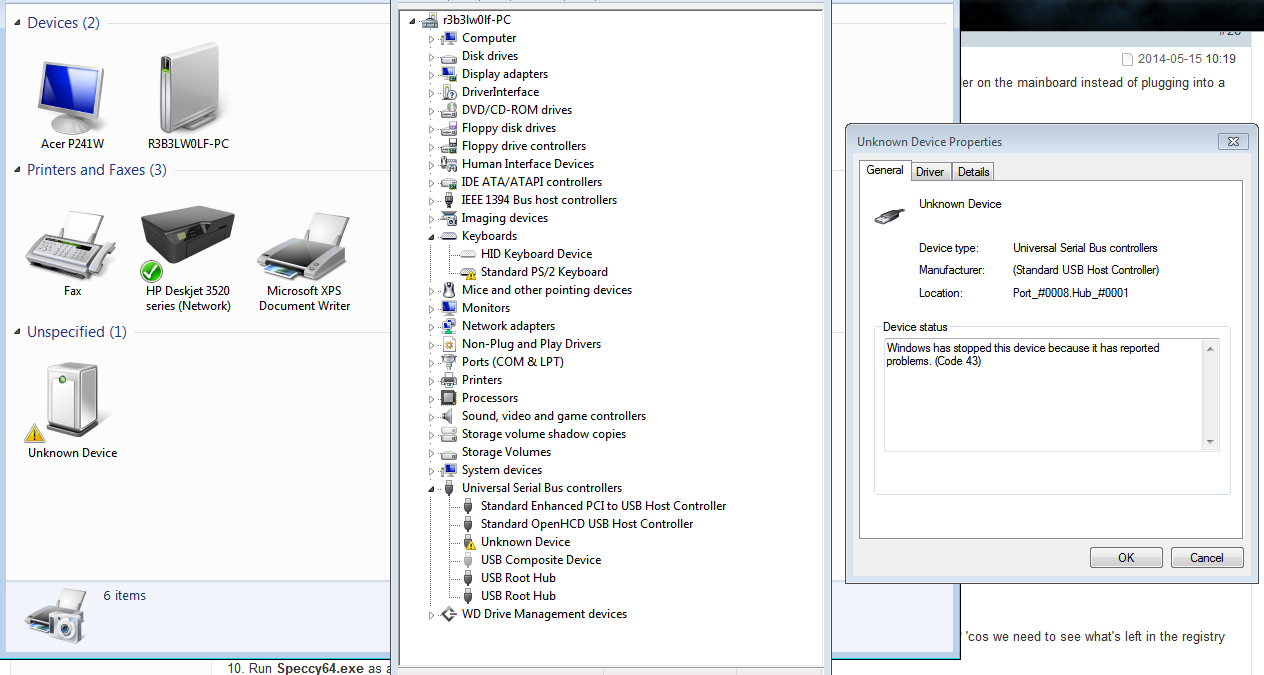

3. Post a screenshot of all devices in Device Manager, expanding the USB section.

Hope this helps…

Reply | Quote

Usb configuration is good.
1.1 enabled
legacy 1.1 enabled
2.0 usb enabled
and the speed is hispeed (not full speed)
ASUS Update V7.18.02 for Windows 32/64bit XP & 32/64bit Vista& 32/64bit 7 <=– am trying that now

if you're determined to be able to update the BIOS <=– what im determined to do… is to get everything running on my 2 speed usb… NOT 1 speed (never happened before)_, so bios, drivers etc shouldn't have to be redownloaded and installed etc. and its also a fresh install, but still not help LOL)
36977-1msdABr
Like that you mean?

36978-zH5FqBn

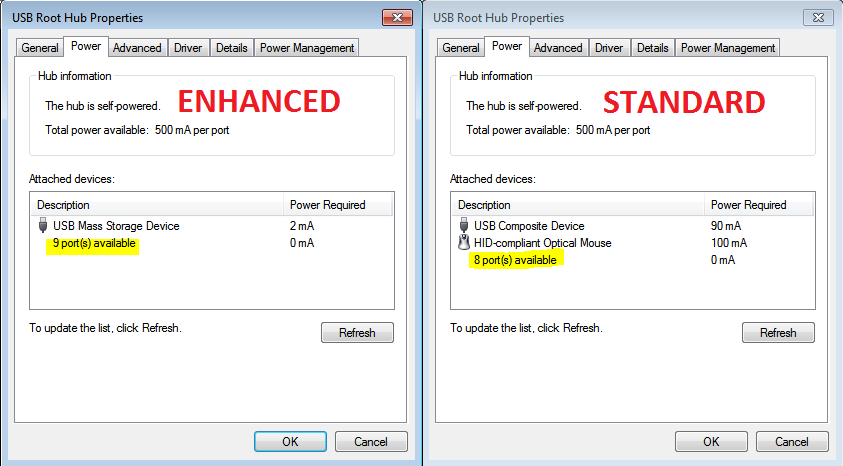

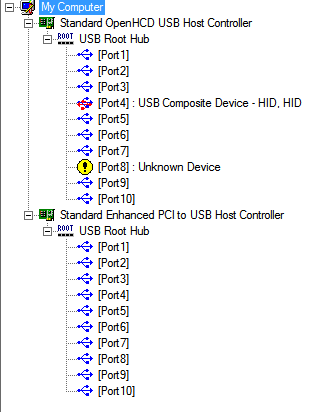

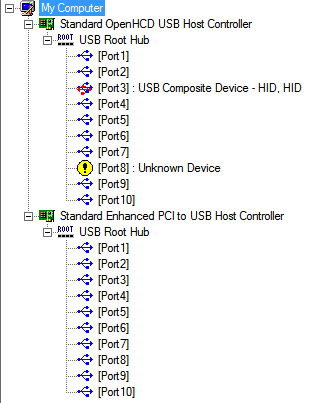

EFT 3 images are the OpenHCD 1.0 controller (8 ports available) the right 3 are the 2.0 (with 7 ports available)
I can attach mates drive to the USB on mobo at the back, and it goes LEFT, for 1 speed. I remove it, plug another drive in, it goes right side. but it alternates.

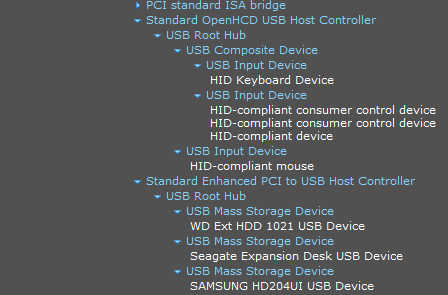

Also this image…
36979-PHAezZub

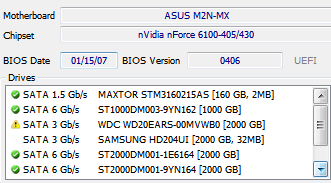

But this, from HWiNFO32 shows something weird, that doesn't show in device manager OR speccy…
36980-3aEun5b
The samsung drive, is actually a Iomega drive. but yeah, see the yellow ! mark there? its not in device manager at all…

==============

This link to the Asus Support site shows a link to Nforce drivers for Win 7 x64. Did you use this to download and install the Nforce driver, leading to this screenshot?

No, driver genius is where the screenshot is from., with the fails… so I had to find manually (and then still couldn't install)

PROGRESS.
bios is now updated thank you 😀

But that doesn't solve my usb issue…

Reply | Quote

You have chipset drivers installed; you’ve successfully updated the BIOS (so that rules out corrupt settings); you’ve confirmed that USB Configuration in the BIOS is set correctly (i.e. set to HiSpeed) and Device Manager doesn’t show any issues with any USB root hubs and host controllers. You said that the problem became worse after following advice to remove the USB devices (root hubs and host controllers) in Device Manager.

I can’t think of anything else to do except a) remove the settings history of your USB connected devices then, if that doesn’t work, b) un-install the root hubs and host controllers from Device Manager and re-boot.

a) remove the settings history of your USB connected devices:
1. Read page 1 of this Techspot article and carry out steps 1-6.

If this doesn’t correct the situation then:
b) un-install the root hubs and host controllers from Device Manager
1. Make sure you are using a PS/2 mouse and keyboard.
2. Unplug any USB-connected devices.
3. Uninstall the USB root hubs then USB host controllers from within Device Manager.
4. Reboot.

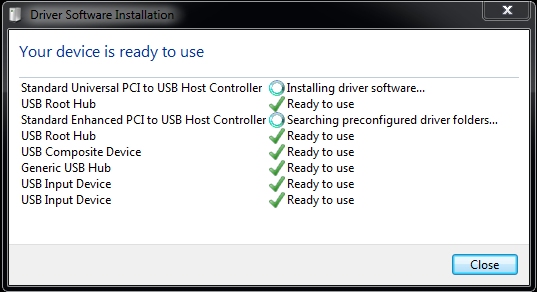

You might see this dialog for a while. If it goes on more than a couple of minutes, just click on the Close button and go into Device Manager.
36982-usb
Click to enlarge

Let us know how you get on when you re-attach your external USB drives.

Reply | Quote

Alright… downloaded and moved.
I know with XP you could use ps2 as same time as USB.
So I plugged a, surprised a found one ps2 mouse into slot… I get lights, but no mouse movements.
So I rebooted pc… maybe it needed to “register” or something…

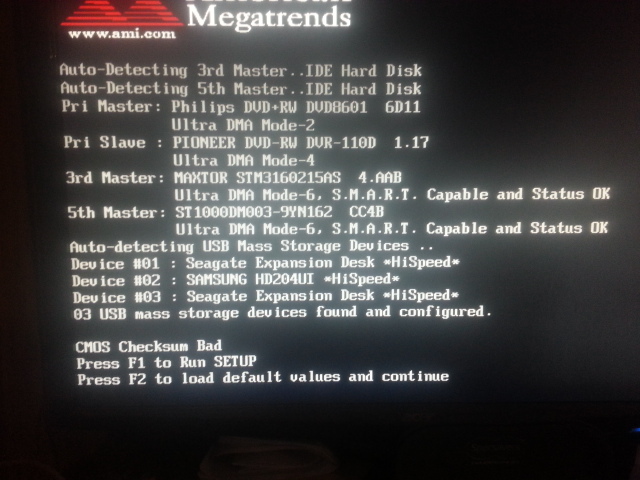

I got this error…
36984-agpWII6E
I hit f1… goes into bios, I hit esc, don’t save changes and it boots up.
That could just be a thing about saving?

Anyways, with this ps2 thing. What if I have none? Or I have, but they not get recognized?

++++++++++++++++++++++++++++++++++

so I restarted, hit f1, went into bios. f10, saved and exited. booted up (woot) and well, unplugged keyboard put it in ps/2 slot with adapter.. but nope, still not pick up.

http://prntscr.com/3i5qeg
==> If, instead, you get an error message like Command not recognized it means you didn’t move Drivecleanup.exe to the right directory
http://prntscr.com/3i5qid

http://prntscr.com/3i5qui

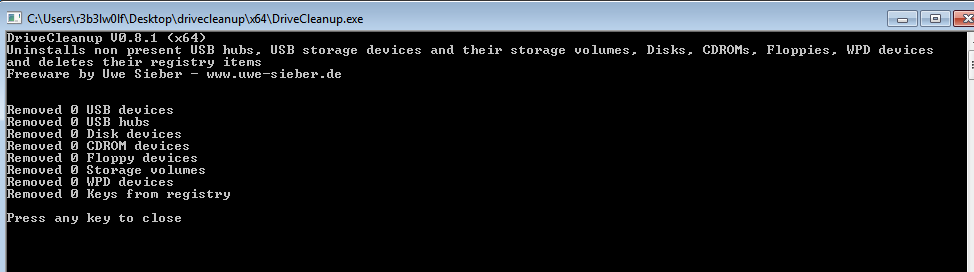

DriveCleanup.exe file name

http://prntscr.com/3i5r1g but in system32 … nothing is there?

I am at a loss now… it tells me it is THERE, when I try to paste it in there. BUT, tells me that error… looking IN the folder, it isn’t there at all to be found.

Well I thought “fk it” and ran it from where I could see it..

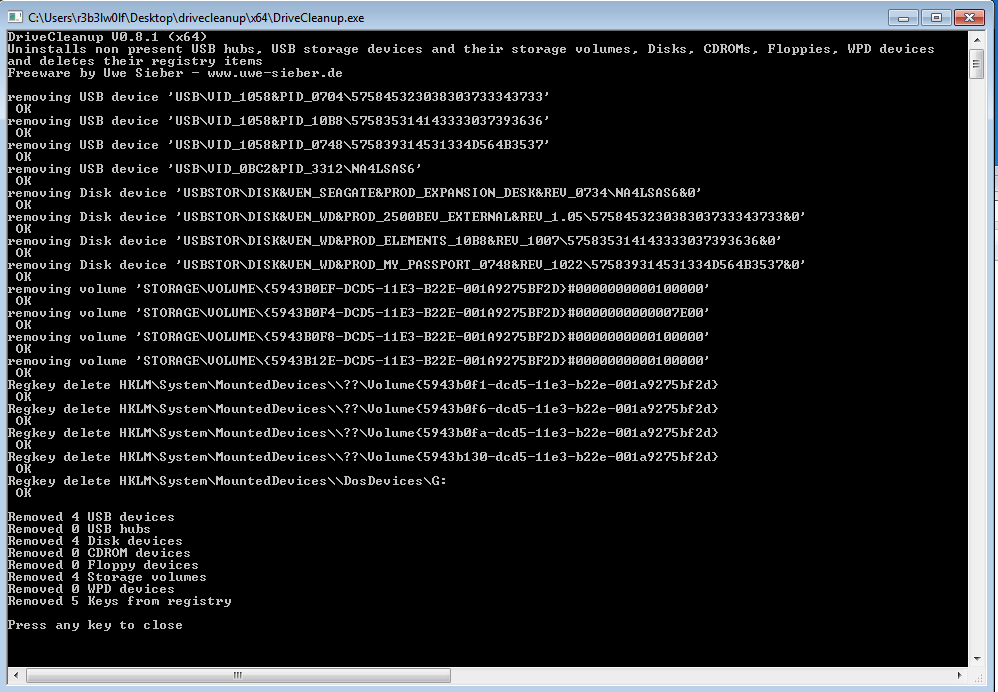

http://prntscr.com/3i5tci
http://prntscr.com/3i5tg3

rebooting now.

Plugged drives in one by one… and is exactly the same.
3 externals on the mobo, show up as normal, on enhanced.

Plug new drive in… and BOOM. straight to the OpenHCD with the 1 speed… and that is in the FOURTH usb port on the mobo… right next to the other three.

Explain that one for me please LOL

*confused and dazed and bald now*

Reply | Quote

From the BIOS screenshot it appears the BIOS correctly identified the first 3 mass storage devices as USB 2-capable and mounted them as HiSpeed (i.e. using EHCI). However, immediately after mounting the second Seagate drive the BIOS corrupted (CMOS checksum bad) so you had to correct this. (If it happens again, try using F2 so the default values are used and you can continue.)

Just in case it’s an issue with one of the Seagate drives (failing drive controller?), you need to do several tests of booting with different mass storage devices (looks like you have a wide selection) to see if there is a ‘mix’ of devices which always causes a CMOS checksum bad condition then try to narrow it down to the one particular drive (probably one of the Seagate’s) which is the culprit.

For example, use:
[INDENT]Pass 1
My Passport external drive
Toshiba USB3 external drive
Seagate Expansion Desk 1 external drive

Pass 2
My Passport external drive
Toshiba USB3 external drive
Seagate Expansion Desk 2 external drive[/INDENT]

Another thing to try is to use something like Speccy (which I know you already use) or HDTune to check the health status (S.M.A.R.T.).

As you already know, there’s something weird going on with your PC. If you look at the http://prntscr.com/3i5tg3%5B/B%5D%5B/url%5D screenshot, you’ll see at the bottom that the registry information was identified but not removed.

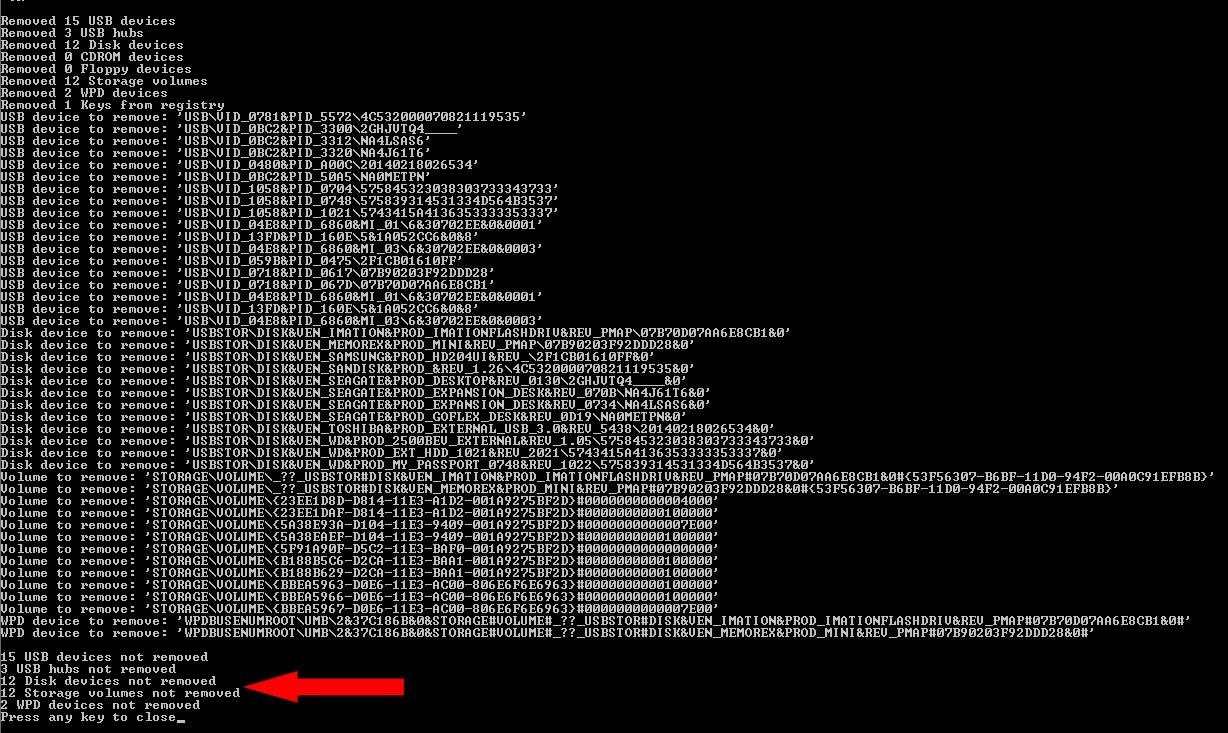

36985-drivecleanup
Click to enlarge
If you ran DriveCleanup.exe from an elevated command prompt then it looks like there may be a permissions issue in the registry because the information under HKEY_LOCAL_MACHINESYSTEMCurrentControlSetEnumUSB and HKEY_LOCAL_MACHINESYSTEMCurrentControlSetEnumUSBSTOR was not deleted.

To check, you can do the same by using Nir Sofer’s USBDeview. Download the x64-bit version, unzip it, right-click on usbdeview.exe and choose Run as administrator.

When USBDeview opens:

[*]Scroll to the right and drag the USB Version column far to the left so you can see it.
[*]Remove your external mass storage devices. USBDeview should show them change to disconnected.
[*]Press CTRL+F7 to display the root hubs. Your Options should look like this:
36986-usbdeview-options
Click to enlarge

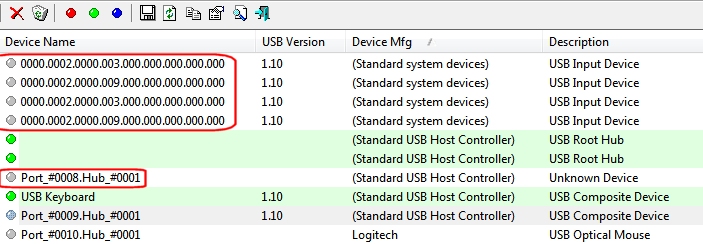

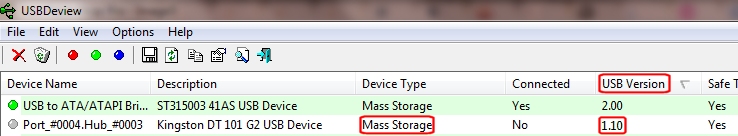

[*]Select all the disconnected mass storage devices (especially any marked as using USB 1.10) and use File > Uninstall Selected Devices.
36987-usb1
Click to enlarge
[*]If you are using a mouse connected using PS/2, select the USB Root Hubs and use File > Uninstall Selected Devices. (Don’t do this if you are using a USB mouse ‘cos you won’t be able to shut down using the mouse.)
[*]Shutdown.
[*]Re-attach 3 mass storage devices (Western Digital My Passport external drive, Toshiba USB3 external drive and another Western Digital external drive).
[*]Restart PC and watch for signs of BIOS corruption.
[*]Report back with results.

Reply | Quote

Will come back and edit this post and report after this… but will say the “CMOS checksum bad” only appeared after the bios upgrade.

If you ran DriveCleanup.exe from an elevated command prompt then it looks like there may be a permissions issue in the registry

If you re-read my post, you will see that I couldn’t.
I extracted the zip. I moved to system32, and cmd (as admin) told me it wasn’t a internal or external command” so I went looking for it IN the system32, couldn’t see it at all. So went to drag it in again, and was told that it was there and to overwrite it. After I over wrote it, I STILL couldn’t see it in system32, so I ran it from folder on the desktop. Which then opened it.
=====

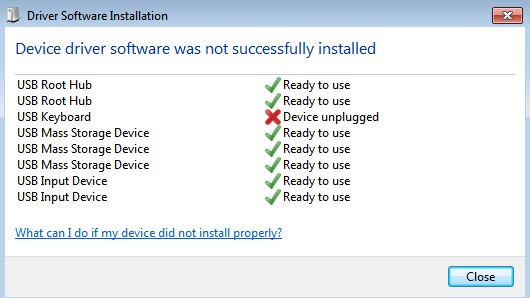

Alright… not sure if good thing or not.. when I upgraded bios, and it was getting cmos checksum bad after it, and I had to press f1 or f2, and I did f1, went into bios, and then f10 to save settings… never had the stall again, BUT I its either going too quick to notice it, or it not showing on bootup… the flash screen or whatever… it goes from cursor top right… straight to windows loading up. So I not see any text, except “windows” when starting up. Not sure if good or bad.

36990-7DPnhiY9

Not sure why usb keyboard says removed, cos I couldn’t and can’t remove it, as no ps2 keyboard… so thats strange… and it turned all the NAMED ext hdds into “mass storage” tho while trying to find the drivers, it had the correct name for them…

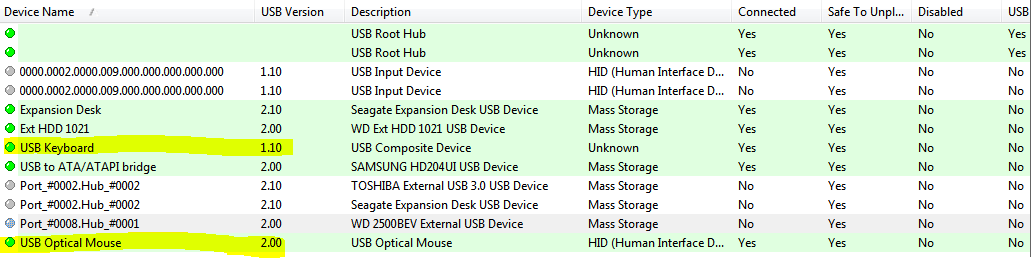

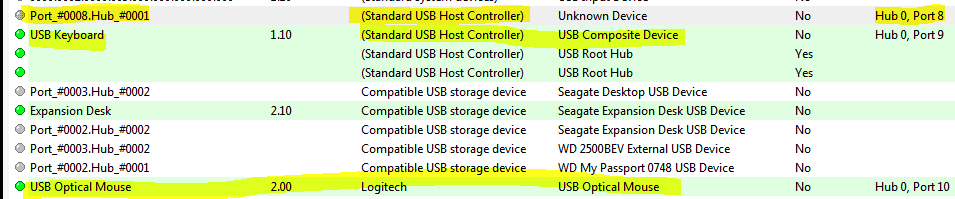

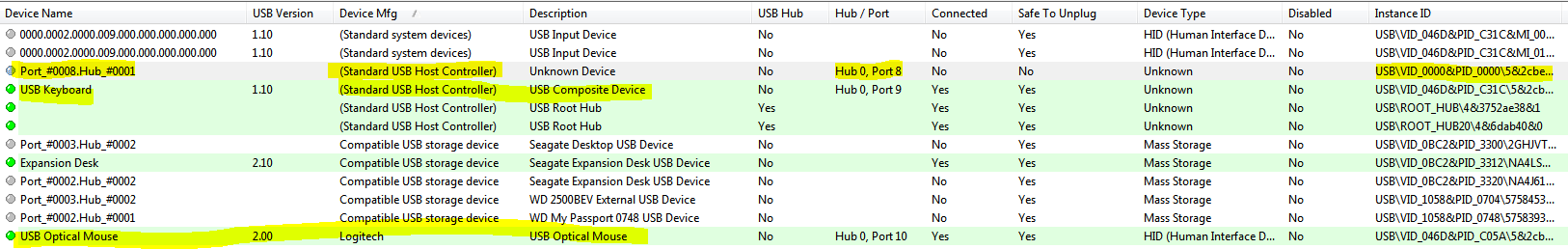

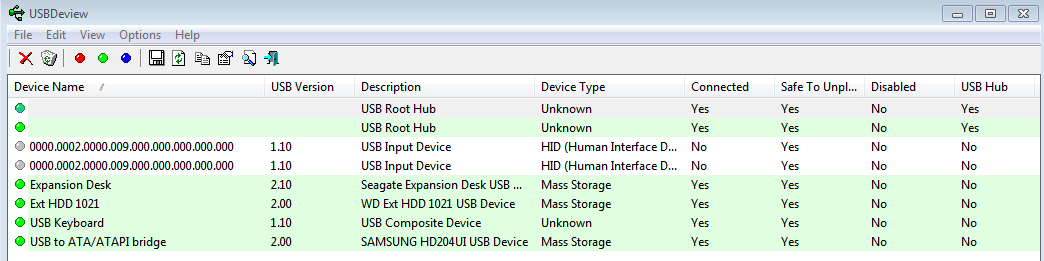

USBD3eview shows this now
36991-uJ5ijQHP

I will attqa6ch the toshiba… on the other MOBO usb slot that is free… and see what happens.
It shows in USBDevices as a 2.10 (it was doing 1.1 from same slot yday.
Will eject it, and put the Expansion Desk 2.10 Seagate Expansion Desk (I have TWO of these drives. One is on TV, the other is always connected to PC.) and see what happens

36992-ihDMpgLg

Okay… that also goes 2.10 (which is good) but it still sees the Toshiba drive.. and what are the other two I have highlighted? “human interface devices”

Plug something in front and the issue not resolved…..
36993-IOP5NxiC

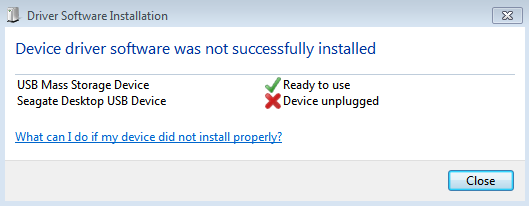

I never ever got the “perform faster” msg, until I uninstalled all the USB devices from device manager when the issue first arose.

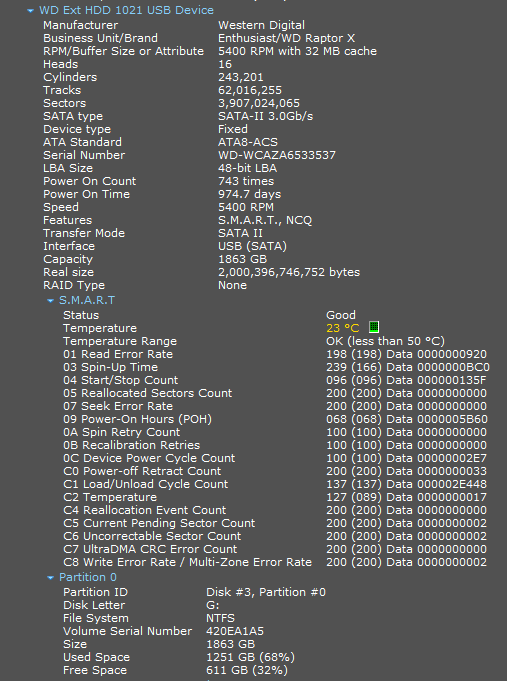

It seems that the drive below, in HWiNFO32 is causing problems? but it is the only place I see it is a issue, device manager shows as fine and all…
36995-QYZiL5ai
Info from speccy about that certain drive.
This is interesting… the iomega drive (which shows as samsung)…
36996-wcmNU5y
Why doesn’t it show like all the other devices? 🙂

Thanx for the help peoples.

Reply | Quote

Your USB-connected system’s setup now appears to be sorted, i.e. all mass storage devices are now running at USB 2.0 with the exception of one of your two USB-connected Expansion Desk external drives.

The Western Digital hard disk-based device with serial no. WD-WCAZ6533537 appears to have a problem… so you need to determine whether this is to do with the drive itself, its HD controller or the USB interface providing the link between the drive and your PC. (Post again if you need help with diagnostics on this particular device.)

The rest of the USB sub-system now appears to be fine.

For info, HIDs (Human Interface Devices like USB keyboards and USB mice) will always use USB 1.10 (‘cos humans just aren’t as fast as computers… except for my daughter txting) instead of USB 2.0 or USB 3.0.

Also, the Iomega device (using a Samsung hard disk) is just using a USB-based ATA/ATAPI bridge controller to connect the device.

It looks like both your BIOS update and USB problems have now been sorted.

As this appears to have been your first topic since joining the forum, I hope this has helped.

Reply | Quote

Sorry, don’t mean to be contradictory, but its not sorted.
I never ever got “this device can perform faster” EVER now I am- I would like to get it BACK to that, so as whatever drive I plug in, it goes to 2.0… not the 1.1 speed crap. Understand, why I am saying the problem is not sorted?
How it is now, is exactly how it was when I first came here with the problem- nothings changed.

I just plugged usb mouse back in……
36998-aArSnTAJ
Well as you can see, that is using 2.0…
“(Human Interface Devices like USB keyboards and USB mice) will always use USB 1.10” <=– with my pc, its not 1.1 as you can see.

4 USB ports at the back, are on the mobo.
2 USB ports at the back are old school, that I got from another pc and put in and connected to mobo (that has the keyboard and mouse Logitech K120 combo)
2 Ports at the front which came with PC.

The BOTTOM usb port at front is dead. The TOP works. How do I know this? I plugged keyboard in bottom one, booted up "No keyboard installed" I plugged it in the top one, and it told me I had a keyboard.

If I plug mouse into the old as usb that I connected, and it goes to 2.0, why doesn't the keyboard right next to it?
Yet I plug a external drive into front port… it straight away tells me it can perform faster, and to attached it to a spare bold port, on the enhanced USB host controller?

How can I manually get it to do that? To use… the "bold" ports it tells me to connect the drive to (image in previous post).

And with USDBevice… with the ones "not there" anymore, is it safe to delete/ remove them?

(Post again if you need help with diagnostics on this particular device.)

Please, cos I don't know how to diagnose if it is the drive itself, or the controller (It is on the MAIN mobo ports with the other two, and they are fine… so maybe its the drive itself? But again, I see no probs at all, and can transfer at normal speeds.

36999-xEnBG0FL
It says the version is 2.0 BUT it runs slooowwwwww
Why? *pulls hair out"
It is plugged into the FRONT top usb port.

Reply | Quote

From your screenshot it appears that all mass storage devices (external hard drives) are now connecting using USB 2.

Unusually, your mouse also appears to be connecting using USB 2 (so that’s a plus… although IMHO this may be a fault of USBDeview, ‘cos I’ve never known USB mice connect at anything other than USB 1.1… but I could be wrong).

I understand that the front lower USB port (BOTTOM usb port at front) on your PC appears to be dead but the front upper USB port seems OK.

I’m having trouble understanding your latest info, i.e.:

4 USB ports at the back, are on the mobo.
2 USB ports at the back are old school, that I got from another pc and put in and connected to mobo (that has the keyboard and mouse Logitech K120 combo)
2 Ports at the front which came with PC.

Does this mean:
4 USB ports at the back are directly connected to the mainboard?
2 USB ports at the back are connected via a PCI card?
2 ports at the front of the PC are connected internally (within the PC) to a USB header (one of which appears dead)?

Reply | Quote

Yeah… the 4 usb slots are up near the mobo ethernet, onboard gfx etc.
The two I put in myself… not connected at all via card as such…. I not think…
37001-LTFGl4O2

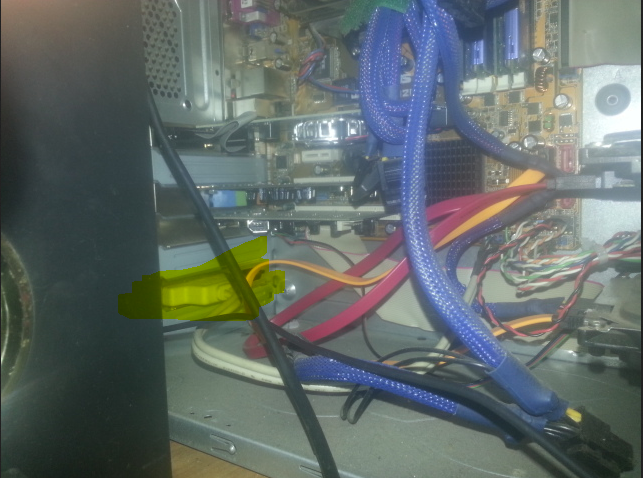

The highlighted yellow bit. Its just in a slot, and then connected via usb header (I think thats the word you used)

From your screenshot it appears that all mass storage devices (external hard drives) are now connecting using USB 2.

So WHY, is it saying “can perform faster by plugging it into the enhanced controller” if it is 2.0? Something is messed there yeah?

37000-ZheQfIZb

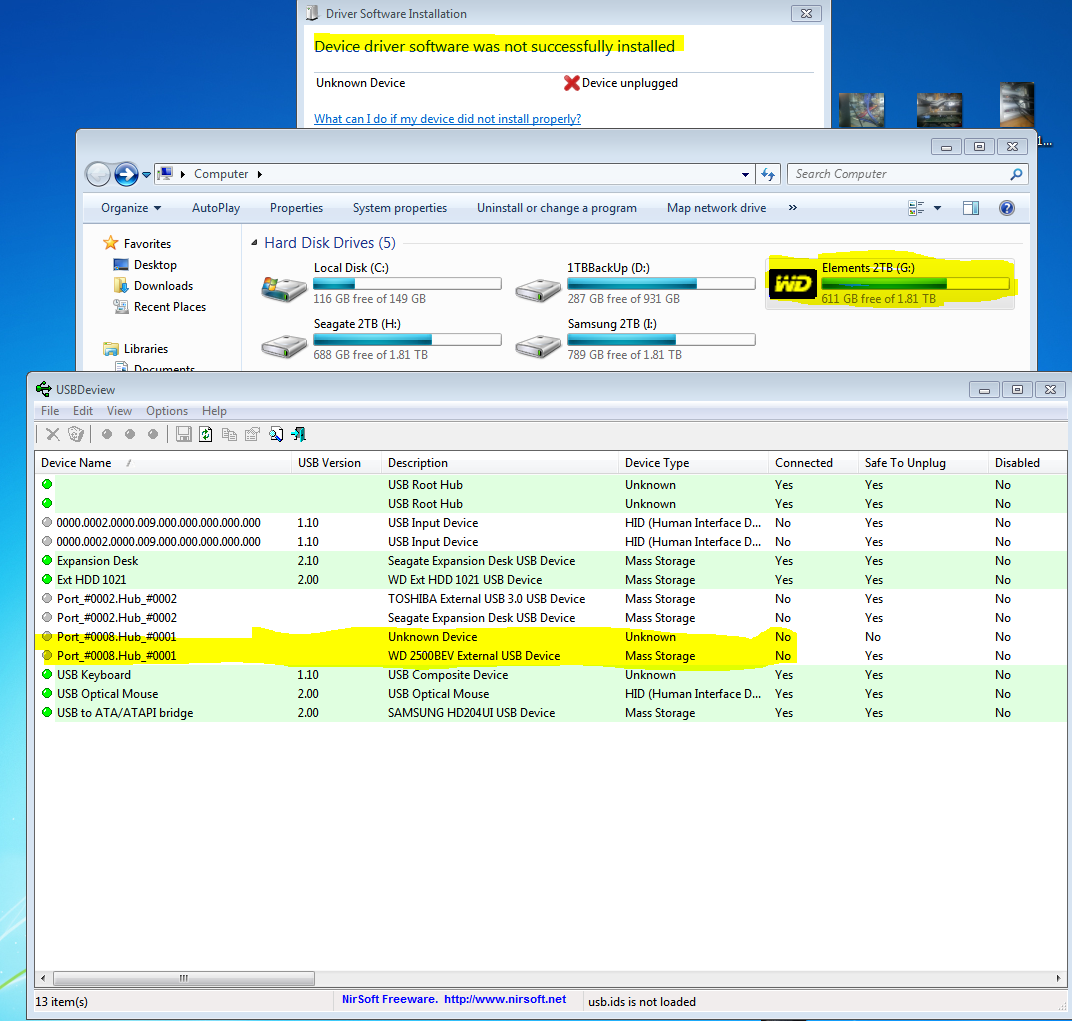

Alright, as soon as I USE that mass storage device in the front (that shows as 2.0 in USBDeview, but actually comes up as 1.1), it disconnects mouse, and keyboard, and I have to reboot every time.

Grrrrr…. now im getting drive dropping, then saying unknown, yet I can use ALL drives attached to the pc?
37002-xVjG3MjH

Seems to have gotten WORSE 🙁

Reply | Quote

Umm… why, in a post about USB problems, did it take until post #15 for you to tell us about the PCI card (with 2 additional USB ports) you had installed?

We’ve (I’ve) been working with wrong/incomplete information all along. My fault completely… I should have asked better questions.

I suggest you look into the USB 2 specification and, in particular, about available bandwith (see How USB Ports Work, i.e. what happens when multiple mass storage devices are connected to a low-power bus). Here’s the info:

“As devices are enumerated, the host is keeping track of the total bandwidth that all of the isochronous and interrupt devices are requesting. They can consume up to 90 percent of the 480 Mbps of bandwidth that’s available (USB 3.0 increases that speed to 4.8 gigabits per second). After 90 percent is used up, the host denies access (my emphasis) to any other isochronous or interrupt devices. Control packets and packets for bulk transfers use any bandwidth left over (at least 10 percent).”

You may also find these posts about General Fix for USB Driver Problems and Troubleshoot: Windows won’t recognize USB hard drive / fix unassigned drive letter useful.

I also suggest, if you continue to use USBDeview, that you download and install the USB ID’s list. Read the documentation of USBDeview, particularly the bit about ‘Vendor Name’ And ‘Product Name’ Columns.

Reply | Quote

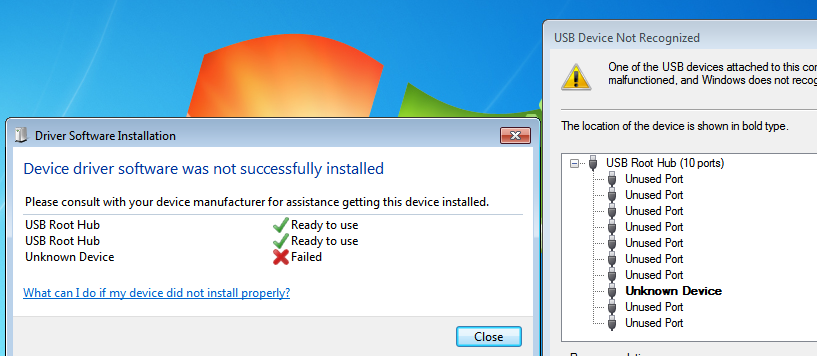

http://prntscr.com/3ir4lu <=– now getting this constantly.

Okay, well I never knew about the bit you were just saying… about "bandwidth" etc.
But please take note of this…
I NEVER had a problem- EVER. I have always had three permanently attached externals, and have had my phone attached, a little 320gb attached, have had an extra 1tb external attached and a 4tb attached etc… and I cannot state this clearly enough.
I have NEVER been told "device can perform faster" it has only been, since I removed everything.

General Fix for USB Driver Problems <=– have done that, didn't help.
Troubleshoot: Windows won't recognize USB hard drive / fix unassigned drive letter <=– will have a read of that… tho it has no problem identifying any of my drives or assigning any letters.

Apart from the upgraded bios (thank you). I am now in a WORSE position than I was before I come here 🙁
That thing that is always popping up now- had also never happened before… so yeah, my problems are worse since I came here..
So thanx for the bios update- but also, thanx for the BIGGER headache.

I have removed ALL of my drives… and this msg is STILL popping up constantly. . Thanx a whole heap for nothing 🙁 Gone from annoying and hair pulling, to smashin it up. Thanx.

Reply | Quote

You appear to have a problem in the Windows registry. Why do I think this? Because one of your previous posts shows a screenshot showing ’10 ports’.

My understanding is that you have 8 USB ports:
4 USB ports on the rear panel, directly connected to the mainboard
2 USB ports on the PC’s front fascia, connected to a USB header on the mainboard by a cable
2 USB ports on a PCI card, connected via the PCI bus on the mainboard

Q1. Is this correct that you only have 8 physical USB ports in current use?
Q2. Are you/have you been using a USB hub? (which would explain the discrepancy)
Q3. Are you using the latest version of Speccy? (i.e. v1.26.698)
Q4. Have you downloaded the USB ID‘s list? (If not, please right-click on the link, choose Save As (or Save link as…) and save the usb.ids file to the same location at Speccy64.exe.)
Q5. Are you happy/confident about editing the Windows registry directly? (Note: This is a particularly difficult area… ‘cos any mistakes could result in your PC not booting.)

For info, the 4 USB ports on the rear panel, directly connected to the mainboard, are the only USB ports that should be used for diagnostics/testing of USB peripherals. The USB ports on the front fascia introduce a microscopic ‘power reduction’ effect due to the wiring used between the USB header on the mainboard and the ports themselves. The effect is minimal (in terms of milliamps) but is still an effect. Likewise, the USB PCI card introduces a change to the ‘standard’ USB environment, i.e. that of using an additional system driver (.sys file) to recognise the device itself.

If you are happy to continue with diagnostics then, please, only use the 4 USB ports at the rear of the PC which are directly connected to the mainboard.

Also, as bus-connection speed (i.e. USB 2.0 v 1.10) is an issue, please make sure that your USB mouse and USB keyboard are connected to the 2 USB ports provided by the PCI card (so the 4 ports on the back of the PC that are directly connected to the mainboard are kept free for speed/power-sensitive peripherals). Once you have done this, please carry out a Start > Shutdown cycle twice. (Please do not use Start > Shutdown > Restart) I know it sounds stupid but you/I need the results written to HKEY_LOCAL_MACHINESYSTEMCurrentControlSet and its copies, i.e. HKEY_LOCAL_MACHINESYSTEMCurrentControlSet001, etc.

Hope this helps…

Reply | Quote

You have:

1) a software problem
2) a configuration problem
3) a driver problem
4) a malware problem
5) a hardware problem
6) a firmware problem

Firmware: If your computer ever worked, it’s unlikely that you have a firmware problem. In addition to the BIOS, some of the PCI cards also have firmware that can be updated, but if they worked that is also unlikely.

Hardware: Since you have three different USB hardware controllers, this seems unlikely.

Malware: This may be more promising, but usually malware does not affect USB ports. If you haven’t used at least 5 different malware scanners, you haven’t really scanned for malware. One of the things that malware scanners are known for is that none of them will catch everything, but if you use several of them, your chances are much improved.

Driver: You have the most recent driver, but have you tried uninstalling the driver, and then reinstalling it? Sometimes that will do it.

Configuration: Device Manager, Registry, etc., you have pretty well exhausted this one.

Software: Reinstalling Windows 7 is the kind of Best Buy Rookie Tech move that you should keep in reserve until you have tried everything else, and just want to get the thing working. You will have to decide if you are there yet.

Reply | Quote

@Prescott, is it OK if I ask a few questions to clarify your post?

Hardware: Since you have three different USB hardware controllers, this seems unlikely.

Q. Please clarify. Do you mean USB Host Controllers? If not, what USB-connected hardware controllers are you referring to? (The OP has many hardware controllers in the multiple external devices he has available.)

Driver: You have the most recent driver, but have you tried uninstalling the driver, and then reinstalling it? Sometimes that will do it.

Q. Which driver are you referring to? Do you mean a driver for a particular piece of hardware (in which case, which hardware) or do you mean the multiple drivers for the USB protocol components implemented in Windows 7 (i.e. usbd.sys, usbhub.sys, usbport.sys, usbuhci.sys, usbstor.sys, etc.) and how did you determine that, whatever it was, was the most recent? (Whilst I broadly agree with what you say, using sfc /scannow to check Win 7’s built-in USB protocol drivers (which appear to be working) seems a bit extreme at this point.)

Malware:

Q. Umm… what’s your evidence to introduce this as a possible issue?

Configuration: Device Manager, Registry, etc., you have pretty well exhausted this one.

Q. Given that the Windows registry is dynamic, how did you arrive at this conclusion? (‘cos – sorry – I really have to disagree… in fact, I think it’s fundamental to the OP’s problem.)

Reinstalling Windows 7 is the kind of Best Buy Rookie Tech move that you should keep in reserve until you have tried everything else, and just want to get the thing working. You will have to decide if you are there yet.

This is the only proposed action I possibly agree with (despite the disparaging “Best Buy Rookie Tech” description) but, given the disruption involved, think the OP is not there yet. Just my opinion though…

Reply | Quote

37008-E7UghM2O

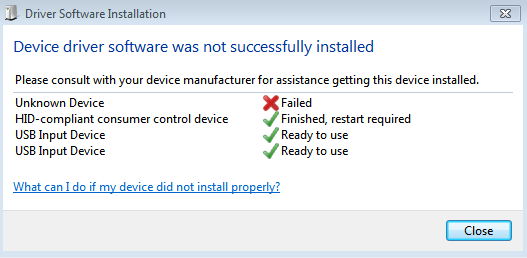

USBDeview has “identified” what is constantly not being recognized, and what is constantly popping up and such, as a “Standard USB Host Controller”
I have gone through and seen my options (not letting windows download, but choosing from list) and I get this warning…

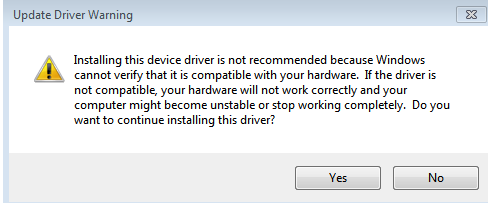

37009-N0zTAv9N
on any of the usb host controllers, generic controller etc… I haven’t pressed yes, cos not sure of the outcome LOL
(about that usbdeview image. the keyboard and mouse are a logitech mk120 combo… you would think that it would be both “logitech” as “device mfg”, not a “standard usb host controller”)

I reinstall won’t help, cos I have already done that. I have cleared the history a few times (driveclean) and have removed ALL usb from pc, leaving only a ps2 mouse connected.
On reboot, “searching for drivers” etc, and all are good. and then after 5 minutes or so, boom, this msg keeps popping up
37011-V7mGM8BQ
I click it and it shows this….
37010-Iq5eyXb3
OR, the window is completely blank, cos it not anywhere LMAO

On the “USB Root Hub” properties “on Standard OpenHCD USB Host Controller”, it has the mouse and keyboard and the unknown device.

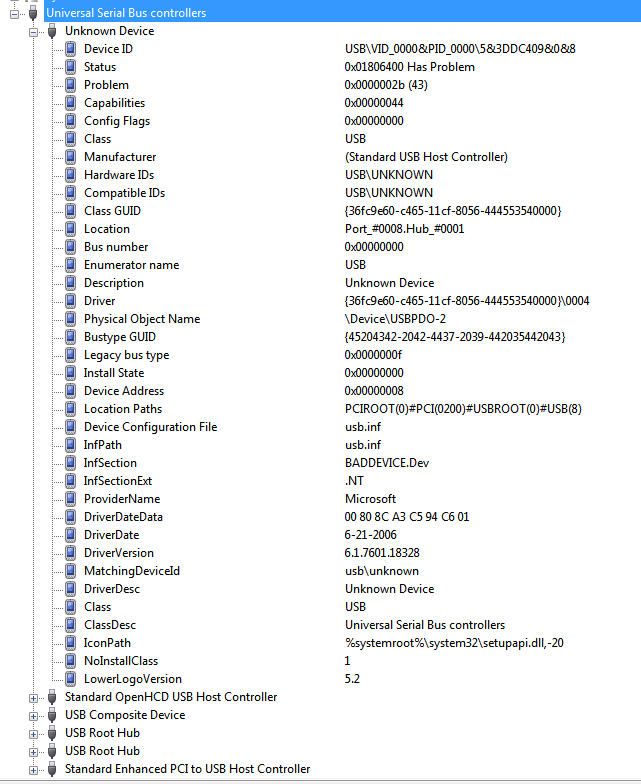

If I click properties on the unknown device in device manger, and then click the driver info… it tells me none a needed or loaded.

Yes, I only have 8 physical ports.
4 on mobo. 2 at front, 2 at the back (which is only connected to mobo via usb cable plugged into pc)
The BOTTOM us at front is dead (no keyboard found” on bootup when one is plugged in there.
The TOP lets me know a keyboard is there.

Maybe it IS hardware… that front one is finally dead?

Something interesting to note.

Using one REAR mobo ports.
If I copy something to external toshiba (which is usb 3 usb powered) it takes half an hr or so (1mb/s). and extracting something to it, and it goes quick, and then goes not responding.
If using the SAME port, I plug in a usb 3.0 dc powered external, it transfers in 2 minutes or so (16mb/s), and extracting is done in quick time aswell.

Could be a mix of dead front usb ports, AND my 500w psu not enough power to run a USB powered external?

But I must state, in all my time with this pc… I have NEVER been told “device can perform faster” no matter how many externals have been plugged into pc.
So in my eyes, something pretty major has happened… and a windows reinstall, bios upgrade, hasn’t fixed the situation.

please make sure that your USB mouse and USB keyboard are connected to the 2 USB ports provided by the PCI card

Well not sure if it is a card or not, cos it only attached to mobo but a cable (much like the front 2 usb slots), but both mouse and keyboard are there.

Reply | Quote

I’m still struggling to understand your setup. I get that you have 4 USB ports at the back of the PC and 2 on the front fascia. It’s the “2 at the back (which is only connected to mobo via usb cable plugged into pc)” that I don’t understand. Most 2-port adapters are cards that plug into a PCI slot, e.g. like this:
37014-images
It sounds like yours is just the plate with 2 ports with a cable running from the 2 ports and connected to a USB header on the mainboard.

Your registry is definitely messed up.
37015-screwed
Click to enlarge
For example, at position 1 in the picture it shows Hub #0001 yet at position 2 the same device shows as Hub 0. Positions 3 and 4 show as ports 9 and 10… on an 8 port system.

As another example, this one root hub shows as having 10 ports connected to it.
37016-10ports
Click to enlarge
This hub has the mouse and keyboard attached to it… so I’m beginning to suspect this 2-port adapter itself is faulty (as it’s showing 10 ports instead of just 2). Are you OK with removing this 2-port adapter for the time being whilst we continue troubleshooting?

Using one REAR mobo ports.
If I copy something to external toshiba (which is usb 3 usb powered) it takes half an hr or so (1mb/s). and extracting something to it, and it goes quick, and then goes not responding.
If using the SAME port, I plug in a usb 3.0 dc powered external, it transfers in 2 minutes or so (16mb/s), and extracting is done in quick time aswell.

This could be down to different spin/bus translation speeds. For example, if the USB powered external Toshiba is a small (2.5″) drive then it’s likely to be a 5400 rpm SATA 1 drive whilst the mains powered external drive could be a 3.5″ SATA 3 drive running at 7200 rpm or even 10000 rpm, i.e. only the USB 3.0 interface would be comparable.

Reply | Quote

when I first posted it kept telling me “ticket expired” or something, so I just copied and posted. Edited and done the images again.

Reply | Quote

Just to trip you out some more than….
37022-LR5Ngy4S
If looking at that, says I have a total of 17 available to use.
9 on enhanced, 8 on standard.

Not the greatest image I could find… but, to explain the one at the back that I put in…
37019-YvCwfqVU
but it only has ONE side…. its only got 2, of a possible 4. Make sense now?
USB 10 USB 2.0 ports /1.1 ports <=– my mobo has 10 ports available… what THAT breakdown is, I don't know, how many .2.0 and 1.1, not sure, unless its 20 in total? Which would then make sense.

Are you OK with removing this 2-port adapter for the time being whilst we continue troubleshooting?

Would mean putting the mouse and keyboard into the mobo USB, but im fine with that.
I just wanna get it back so I not see "can perform faster" again, and to stop this window popping up LOL

So nothing to do with dc powered vs usb powered… well thats good news.

I have a mate from the UK sending me one of these…
37020-V261-1004_chiclet01_aa_mn_3526248
Won't actually give me usb 3 tho, cos mobo is only 2.0 that I can see)

Reply | Quote

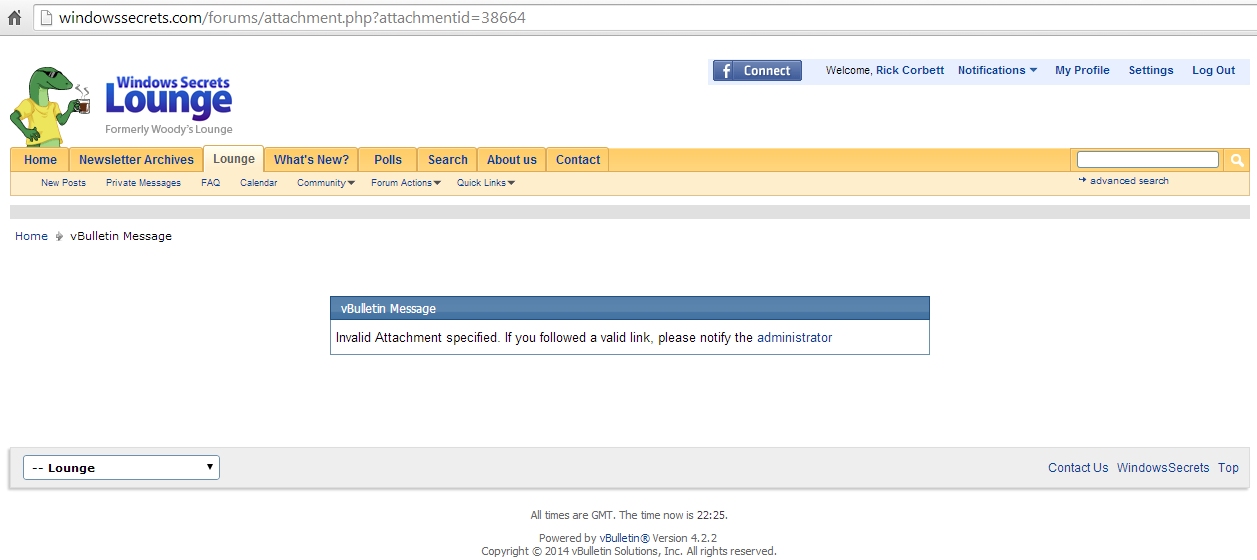

I’m not able to open any of the attachments… all 3 come up as ‘invalid attachment’.
37021-ouch
Click to enlarge

Reply | Quote

OK, not a great image but you’ve confirmed that it’s what some people call a ‘flying lead adapter’, i.e. it connects to a USB header on the mainboard instead of plugging into a PCI slot.

The 4-port adapter your friend in the UK is sending you should operate at USB 3 ‘cos it will use the USB 3 controller on the card itself then direct the data through the PCI (Express) bus it’s plugged into.

How best to progress this situation?

I suggest you remove the ‘flying lead adapter’. You don’t have to physically remove it, just disconnect it from the mainboard. Here’s what I would do:
1. Shutdown PC.
2. Unplug all USB devices from your PC, including mouse and keyboard.
3. Disconnect the ‘flying lead adapter’ from the mainboard.
4. Optional – use a PS/2 mouse and PS/2 keyboard until the registry is cleared of stored info about USB devices. If you don’t want to do this, it’s fine.
5. If not using a PS/2 mouse and PS/2 keyboard then plug USB mouse and USB keyboard into lower 2 USB ports at back of the PC.
6. Power on PC and wait for USB mouse and USB keyboard to be recognised and become operational.
7. Remove the settings history of your USB connected devices from the registry using DriveCleanup. (i.e. page 1 of this Techspot article and carry out steps 1-6.) (Why? ‘cos we need to prune your registry of extraneous USB info and make it forget the last known settings/info about USB devices.)
8. Run Device Manager, click on View in the menubar and select Show hidden devices.
37023-hidden_devices
Click to enlarge
If any devices show an error or issue, post a screenshot showing the error/issue.
9. Run USBDeview-x64.exe as administrator and post a screenshot showing every device, connected or disconnected. (Why? ‘cos we need to see what’s left in the registry and USBDeview provides a quick, visual record.)
10. Run Speccy64.exe as administrator, click on File in the menubar and select Save as Text file….
37024-speccy64
Click to enlarge
Post the text file. (Why? ‘cos whilst USBDeview is good, if there IS an issue then we need Speccy’s more comprehensive reporting abilities. Even if there doesn’t appear to be an issue, the Speccy report is worth having as a check that there aren’t any other potential issues.)

Please try not to attach any other USB devices at this point. I realise you may be impatient to see whether disconnecting the ‘flying lead adapter’ has had any effect on the problems you have been having but I think the approach I’ve described has the best chance of fixing what I believe is down to corruption in your registry.

Reply | Quote

I removed the flying lead… have ps/2 mouse, but can’t get ps/2 keyboard working… and device manager says “This device is not present, is not working properly, or does not have all its drivers installed. (Code 24)”
I do have a usb/ps/2 adapter, but yeah, if its not working, it can’t be used.

So I shut down, removed the flying lead from pc.
Ran driveclean (but I cannot run it link says to.. because of “not internal or external command” or whatever it was, it IS in system32, cos when I try to drag and drop, it says it is there (but, cannot physically see it.))
So I run it with a right click and run as admin (remember, no keyboard also at the moment) from desktop folder…
Screenshot below.
37025-UcOun2Vj

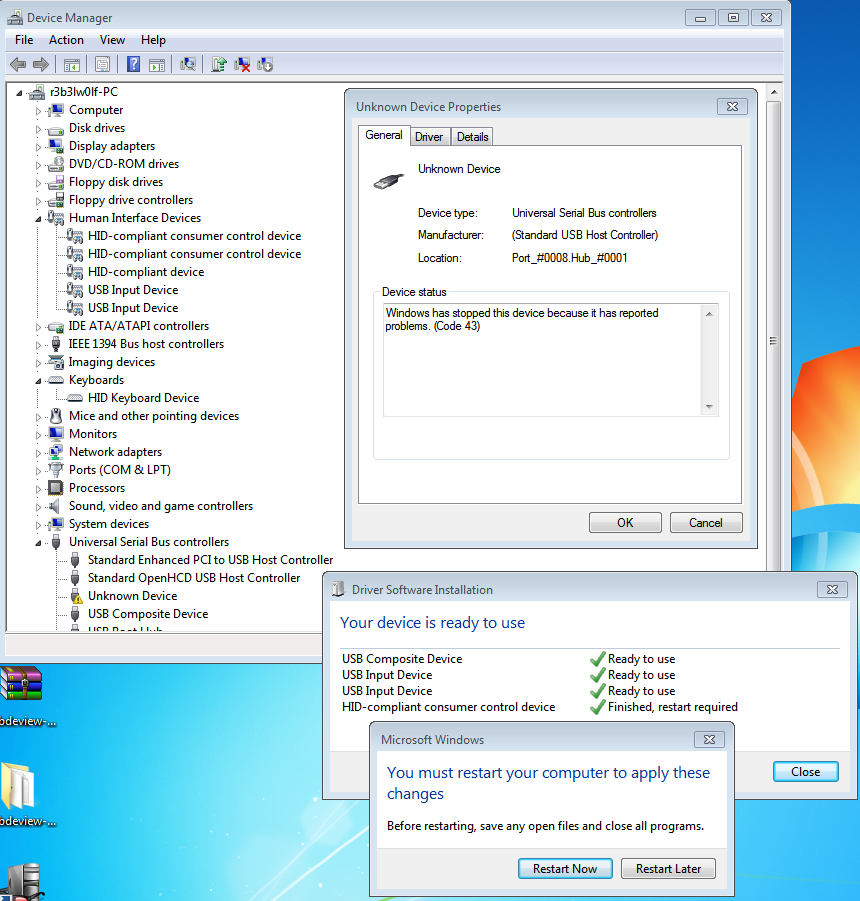

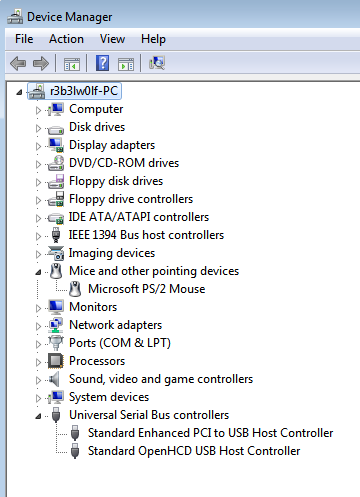

Device manager showing hidden, and then a right click and properties of the unknown (here you can also see that ps/2 keyboard is ” ! ” which explains why I had to put on USB keyboard to type this msg.
37026-6ARwn4RK

This is also USBDeview screen aswell
37027-cv7lLFy

Speccy report (from BEFORE I attached the usb keyboard.)

Summary
Operating System
Windows 7 Ultimate 64-bit SP1
CPU
AMD Athlon 64 X2 3800+ 32 °C
Windsor 90nm Technology
RAM
6.00GB Single-Channel DDR2 @ 334MHz (5-5-5-15)
Motherboard
ASUSTeK Computer INC. M2N-MX (CPU 1) 35 °C
Graphics
Acer P241W (1920×1200@60Hz)
ATI Radeon HD 5450 (Gigabyte) 50 °C
Storage
149GB MAXTOR S TM3160215AS SCSI Disk Device (SATA) 41 °C
931GB Seagate ST1000DM 003-9YN162 SCSI Disk Device (SATA) 36 °C
Optical Drives
Philips DVD+RW DVD8601 ATA Device
PIONEER DVD-RW DVR-110D ATA Device
Audio
SB 5.1 VX
Operating System
Windows 7 Ultimate 64-bit SP1
Computer type: Desktop
Installation Date: 1/05/2014 3:00:55 PM
Windows Security Center
User Account Control (UAC) Enabled
Notify level 2 – Default
Firewall Enabled
Antivirus Disabled
Windows Update
AutoUpdate Download Automatically and Notify Prior to Install
Windows Defender
Windows Defender Enabled
.NET Frameworks installed
v4.5 Full
v4.5 Client
v3.5 SP1
v3.0 SP2
v2.0 SP2
Internet Explorer
Version 11.0.9600.17107
PowerShell
Version 2.0
Java
Java Runtime Environment
Path C:Program Files (x86)Javajre7binjava.exe
Version 7.0
Update 55
Build 14
Environment Variables
USERPROFILE C:Usersr3b3lw0lf
SystemRoot C:Windows
User Variables
TEMP C:Usersr3b3lw0lfAppDataLocalTemp
TMP C:Usersr3b3lw0lfAppDataLocalTemp
Machine Variables
ComSpec C:Windowssystem32cmd.exe
devmgr_show_nonpresent_devices 1
FP_NO_HOST_CHECK NO
NUMBER_OF_PROCESSORS 2
OS Windows_NT
Path C:Windowssystem32
C:Windows
C:WindowsSystem32Wbem
C:WindowsSystem32WindowsPowerShellv1.0
PATHEXT .COM;.EXE;.BAT;.CMD;.VBS;.VBE;.JS;.JSE;.WSF;.WSH;.MSC
PROCESSOR_ARCHITECTURE AMD64
PROCESSOR_IDENTIFIER AMD64 Family 15 Model 75 Stepping 2, AuthenticAMD
PROCESSOR_LEVEL 15
PROCESSOR_REVISION 4b02
PSModulePath C:Windowssystem32WindowsPowerShellv1.0Modules
TEMP C:WindowsTEMP
TMP C:WindowsTEMP
USERNAME SYSTEM
windir C:Windows
windows_tracing_flags 3
windows_tracing_logfile C:BVTBinTestsinstallpackagecsilogfile.log
Power Profile
Active power scheme Balanced
Hibernation Enabled
Turn Off Monitor after: (On AC Power) Never
Turn Off Hard Disk after: (On AC Power) Never
Suspend after: (On AC Power) Never
Screen saver Disabled
Uptime
Current Session
Current Time 15/05/2014 1:30:01 PM
Current Uptime 592 sec (0 d, 00 h, 09 m, 52 s)
Last Boot Time 15/05/2014 1:20:09 PM
Services
Running AMD External Events Utility
Running Application Experience
Running Application Information
Running Background Intelligent Transfer Service
Running Base Filtering Engine
Running CNG Key Isolation
Running COM+ Event System
Running Computer Browser
Running Creative Audio Service
Running Cryptographic Services
Running DCOM Server Process Launcher
Running Desktop Window Manager Session Manager
Running DHCP Client
Running Diagnostic Policy Service
Running Diagnostic Service Host
Running Diagnostic System Host
Running Distributed Link Tracking Client
Running DNS Client
Running ForceWare Intelligent Application Manager (IAM)
Running ForceWare IP service
Running Function Discovery Provider Host
Running Function Discovery Resource Publication
Running Group Policy Client
Running HomeGroup Listener
Running HomeGroup Provider
Running IP Helper
Running Microsoft .NET Framework NGEN v4.0.30319_X64
Running Microsoft .NET Framework NGEN v4.0.30319_X86
Running Multimedia Class Scheduler
Running Network Connections
Running Network List Service
Running Network Location Awareness
Running Network Store Interface Service
Running Offline Files
Running Peer Name Resolution Protocol
Running Peer Networking Grouping
Running Peer Networking Identity Manager
Running Plug and Play
Running Power
Running Print Spooler
Running Program Compatibility Assistant Service
Running Remote Procedure Call (RPC)
Running RPC Endpoint Mapper
Running Security Accounts Manager
Running Security Center
Running Server
Running Shell Hardware Detection
Running SSDP Discovery
Running Superfetch
Running System Event Notification Service
Running Tablet PC Input Service
Running Task Scheduler
Running TCP/IP NetBIOS Helper
Running TeamViewer 9
Running Themes
Running UPnP Device Host
Running User Profile Service
Running Windows Audio
Running Windows Audio Endpoint Builder
Running Windows Defender
Running Windows Event Log
Running Windows Firewall
Running Windows Font Cache Service
Running Windows Image Acquisition (WIA)
Running Windows Management Instrumentation
Running Windows Media Player Network Sharing Service
Running Windows Modules Installer
Running Windows Search
Running Windows Update
Running WinHTTP Web Proxy Auto-Discovery Service
Running Workstation
Stopped ActiveX Installer (AxInstSV)
Stopped Adaptive Brightness
Stopped Application Identity
Stopped Application Layer Gateway Service
Stopped Application Management
Stopped ASP.NET State Service
Stopped BitLocker Drive Encryption Service
Stopped Block Level Backup Engine Service
Stopped Bluetooth Support Service
Stopped BranchCache
Stopped Certificate Propagation
Stopped COM+ System Application
Stopped Creative Audio Engine Licensing Service
Stopped Credential Manager
Stopped Disk Defragmenter
Stopped Distributed Transaction Coordinator
Stopped Encrypting File System (EFS)
Stopped Extensible Authentication Protocol
Stopped Fax
Stopped Health Key and Certificate Management
Stopped Human Interface Device Access
Stopped IKE and AuthIP IPsec Keying Modules
Stopped Interactive Services Detection
Stopped Internet Connection Sharing (ICS)
Stopped Internet Explorer ETW Collector Service
Stopped IPsec Policy Agent
Stopped KtmRm for Distributed Transaction Coordinator
Stopped Link-Layer Topology Discovery Mapper
Stopped Logitech Bluetooth Service
Stopped Media Center Extender Service
Stopped Microsoft .NET Framework NGEN v2.0.50727_X64
Stopped Microsoft .NET Framework NGEN v2.0.50727_X86
Stopped Microsoft iSCSI Initiator Service
Stopped Microsoft Software Shadow Copy Provider
Stopped Mozilla Maintenance Service
Stopped Net.Msmq Listener Adapter
Stopped Net.Pipe Listener Adapter
Stopped Net.Tcp Listener Adapter
Stopped Net.Tcp Port Sharing Service
Stopped Netlogon
Stopped Network Access Protection Agent
Stopped Parental Controls
Stopped Performance Counter DLL Host
Stopped Performance Logs & Alerts
Stopped PnP-X IP Bus Enumerator
Stopped PNRP Machine Name Publication Service
Stopped Portable Device Enumerator Service
Stopped Problem Reports and Solutions Control Panel Support
Stopped Protected Storage
Stopped Quality Windows Audio Video Experience
Stopped Remote Access Auto Connection Manager
Stopped Remote Access Connection Manager
Stopped Remote Desktop Configuration
Stopped Remote Desktop Services
Stopped Remote Desktop Services UserMode Port Redirector
Stopped Remote Procedure Call (RPC) Locator
Stopped Remote Registry
Stopped Routing and Remote Access
Stopped Secondary Logon
Stopped Secure Socket Tunneling Protocol Service
Stopped Skype Updater
Stopped Smart Card
Stopped Smart Card Removal Policy
Stopped SNMP Trap
Stopped Software Protection
Stopped SPP Notification Service
Stopped Telephony
Stopped Thread Ordering Server
Stopped TPM Base Services
Stopped Virtual Disk
Stopped Volume Shadow Copy
Stopped WebClient
Stopped Windows Activation Technologies Service
Stopped Windows Backup
Stopped Windows Biometric Service
Stopped Windows CardSpace
Stopped Windows Color System
Stopped Windows Connect Now – Config Registrar
Stopped Windows Driver Foundation – User-mode Driver Framework
Stopped Windows Error Reporting Service
Stopped Windows Event Collector
Stopped Windows Installer
Stopped Windows Media Center Receiver Service
Stopped Windows Media Center Scheduler Service
Stopped Windows Presentation Foundation Font Cache 3.0.0.0
Stopped Windows Remote Management (WS-Management)
Stopped Windows Time
Stopped Wired AutoConfig
Stopped WLAN AutoConfig
Stopped WMI Performance Adapter
Stopped WWAN AutoConfig
TimeZone
TimeZone GMT +10:00 Hours
Language English (Australia)
Location Australia
Format English (Australia)
Currency $
Date Format d/MM/yyyy
Time Format h:mm:ss tt
Scheduler
15/05/2014 3:43 PM; update-S-1-5-21-1446195657-538869315-47644463-1001
15/05/2014 4:32 PM; update-sys
CCleanerSkipUAC
Clean System Memory
Hotfixes
15/05/2014 Security Update for Windows 7 for x64-based Systems (KB2926765)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
15/05/2014 Update for Windows 7 for x64-based Systems (KB2952664)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
15/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2931356)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
15/05/2014 Security Update for Internet Explorer 11 for Windows 7 for x64-based Systems (KB2953522)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
15/05/2014 Security Update for Windows 7 for x64-based Systems (KB2871997)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
15/05/2014 Windows Malicious Software Removal Tool x64 – May 2014 (KB890830)
After the download, this tool runs one time to check your computer
for infection by specific, prevalent malicious software (including
Blaster, Sasser, and Mydoom) and helps remove any infection that
is found. If an infection is found, the tool will display a status
report the next time that you start your computer. A new version
of the tool will be offered every month. If you want to manually
run the tool on your computer, you can download a copy from the
Microsoft Download Center, or you can run an online version from
microsoft.com. This tool is not a replacement for an antivirus
product. To help protect your computer, you should use an antivirus
product.
15/05/2014 Security Update for Microsoft .NET Framework 4.5 and 4.5.1 on Windows 7, Vista, Server 2008, Server 2008 R2 x64 (KB2931368)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
13/05/2014 Definition Update for Windows Defender – KB915597 (Definition 1.173.1985.0)
Install this update to revise the definition files used to detect
spyware and other potentially unwanted software. Once you have
installed this item, it cannot be removed.
11/05/2014 Security Update for Internet Explorer 11 for Windows 7 for x64-based Systems (KB2964358)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
11/05/2014 nVidia – Network – NVIDIA nForce Networking Controller
nVidia Network software update released in August, 2010
10/05/2014 Cumulative Security Update for Internet Explorer 11 for Windows 7 for x64-based Systems (KB2929437)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
10/05/2014 Update for Windows 7 for x64-based Systems (KB2952664)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
10/05/2014 Definition Update for Windows Defender – KB915597 (Definition 1.173.1690.0)
Install this update to revise the definition files used to detect
spyware and other potentially unwanted software. Once you have
installed this item, it cannot be removed.
3/05/2014 Definition Update for Windows Defender – KB915597 (Definition 1.173.1100.0)
Install this update to revise the definition files used to detect
spyware and other potentially unwanted software. Once you have
installed this item, it cannot be removed.
3/05/2014 Update for Windows 7 for x64-based Systems (KB2515325)
This is a reliability update. This update resolves some performance
and reliability issues in Windows. By applying this update, you
can achieve better performance and responsiveness in various
scenarios. For more information please see the Knowledge Base
article. After you install this item, you may have to restart
your computer.
3/05/2014 Update for Windows 7 for x64-based Systems (KB2913152)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
3/05/2014 Security Update for Microsoft .NET Framework 4.5.1 on Windows 7, Vista, Server 2008, and Server 2008 R2 for x64 (KB2898869)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
3/05/2014 Security Update for Microsoft .NET Framework 4.5.1 on Windows 7, Vista, Server 2008, and Server 2008 R2 for x64 (KB2901126)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
3/05/2014 Update for Windows 7 for x64-based Systems (KB2923545)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
3/05/2014 Security Update for Windows 7 for x64-based Systems (KB2912390)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
3/05/2014 Cumulative Security Update for Internet Explorer 11 for Windows 7 for x64-based Systems (KB2925418)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
3/05/2014 Update for Windows 7 for x64-based Systems (KB2732487)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
3/05/2014 Security Update for Windows 7 for x64-based Systems (KB2532531)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
3/05/2014 Update for Windows 7 for x64-based Systems (KB982018)
This is a reliability update. This update resolves some performance
and reliability issues in Windows. By applying this update, you
can achieve better performance and responsiveness in various
scenarios. For more information please see the Knowledge Base
article. After you install this item, you may have to restart
your computer.
3/05/2014 Update for Windows 7 for x64-based Systems (KB2929755)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
3/05/2014 Update for Windows 7 for x64-based Systems (KB2647753)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2656356)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2847077)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2563227)
Install this update to resolve performance and reliability issues
in Windows. By applying this update, you can achieve better performance
and responsiveness in various scenarios. For a complete listing
of the issues that are included in this update, see the associated
Microsoft Knowledge Base article for more information. After
you install this item, you may have to restart your computer.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2789645)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2891804)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2560656)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2918077)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2800095)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2552343)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2864058)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2756921)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Microsoft .NET Framework 4.5.1 for Windows 7 x64-based Systems (KB2858725)
The Microsoft .NET Framework 4.5.1 is a highly compatible, in-place
update to the .NET Framework 4 and 4.5. By using the .NET Framework
4.5.1 together with the C# or Visual Basic programming languages,
you can write Windows Store apps. The .NET Framework 4.5.1 delivers
better performance, reliability, and security than previous versions.
After you install this update, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2620704)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2533552)
Install this update to enable future updates to install successfully
on all editions of Windows 7 or Windows Server 2008 R2. This
update may be required before selected future updates can be
installed. After you install this item, it cannot be removed.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2763523)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2813347)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2862966)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2718704)
Install this update to resolve an issue which requires an update
to the certificate revocation list on Windows systems and to
keep your systems certificate list up to date. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2479943)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2820331)
Install this update to resolve a set of known application compatibility
issues with Windows. For a complete listing of the issues that
are included in this update, see the associated Microsoft Knowledge
Base article for more information. After you install this item,
you may have to restart your computer.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2840631)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2631813)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2640148)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2547666)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2798162)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2536276)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2585542)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain access to
information. You can help protect your system by installing this
update from Microsoft. After you install this update, you may
have to restart your system.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2901112)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2836942)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2919469)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2840149)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2868626)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2929733)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2893294)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2904266)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2884256)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2916036)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2660075)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2844286)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2898857)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2875783)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2570947)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Cumulative Security Update for ActiveX Killbits for Windows 7 for x64-based Systems (KB2900986)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Kernel-Mode Driver Framework version 1.11 for Windows 7 for x64-based Systems (KB2685811)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2887069)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2545698)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2676562)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2930275)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2853952)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2847927)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2893519)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2847311)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2506212)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2868725)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2843630)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2691442)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2862330)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2834140)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2719857)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2603229)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2872339)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2803821)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2807986)
A security issue has been identified that could allow an authenticated
local attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2667402)
A security issue has been identified that could allow an unauthenticated
remote attacker to cause the affected system to stop responding.
You can help protect your system by installing this update from
Microsoft. After you install this update, you may have to restart
your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2864202)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2849470)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2868038)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2757638)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2750841)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2862335)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2709630)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2509553)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2758857)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2846960)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2770660)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2862973)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2785220)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain access to
information. You can help protect your system by installing this
update from Microsoft. After you install this update, you may
have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2732059)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2604115)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2536275)
A security issue has been identified that could allow an unauthenticated
remote attacker to cause the affected system to stop responding.
You can help protect your system by installing this update from
Microsoft. After you install this update, you may have to restart
your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2786400)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2911501)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2861855)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2773072)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2579686)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2685939)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2791765)
Install this update to resolve a set of known application compatibility
issues with Windows. For a complete listing of the issues that
are included in this update, see the associated Microsoft Knowledge
Base article for more information. After you install this item,
you may have to restart your computer.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2729452)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 ATK – system – ATK0110 ACPI UTILITY
Driver update provided by ATK for support of ATK0110 ACPI UTILITY
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2742599)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for User-Mode Driver Framework version 1.11 for Windows 7 for x64-based Systems (KB2685813)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2913431)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2690533)
A security issue has been identified that could allow an authenticated
local attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2743555)
A security issue has been identified that could allow an unauthenticated
remote attacker to cause the affected system to stop responding.
You can help protect your system by installing this update from
Microsoft. After you install this update, you may have to restart
your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2699779)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2726535)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2621440)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2863240)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2908783)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2727528)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2506014)
An issue has been identified that could allow a user with administrative
permissions to load an unsigned driver. This update resolves
that issue. You can help protect your system by installing this
update from Microsoft. After you install this update, you may
have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2868116)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2861698)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Windows Malicious Software Removal Tool x64 – April 2014 (KB890830)
After the download, this tool runs one time to check your computer
for infection by specific, prevalent malicious software (including
Blaster, Sasser, and Mydoom) and helps remove any infection that
is found. If an infection is found, the tool will display a status
report the next time that you start your computer. A new version
of the tool will be offered every month. If you want to manually
run the tool on your computer, you can download a copy from the
Microsoft Download Center, or you can run an online version from
microsoft.com. This tool is not a replacement for an antivirus
product. To help protect your computer, you should use an antivirus
product.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2839894)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Definition Update for Windows Defender – KB915597 (Definition 1.173.822.0)
Install this update to revise the definition files used to detect
spyware and other potentially unwanted software. Once you have
installed this item, it cannot be removed.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2876331)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2929961)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2761217)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2808679)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2532531)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2835364)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2653956)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 for x64-based Systems (KB2861191)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2868623)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2705219)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2922229)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2506928)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2799926)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2732500)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2491683)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2544893)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain access to
information. You can help protect your system by installing this
update from Microsoft. After you install this update, you may
have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2654428)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2928562)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2813430)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2892074)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2712808)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2511455)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2564958)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2619339)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2876284)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2836943)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 for x64-based Systems (KB2832414)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2834886)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2835361)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2698365)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Security Update for Microsoft .NET Framework 3.5.1 on Windows 7 and Windows Server 2008 R2 SP1 for x64-based Systems (KB2736422)
A security issue has been identified that could allow an unauthenticated
remote attacker to cause the affected application to stop responding.
You can help protect your system by installing this update from
Microsoft. After you install this update, you may have to restart
your system.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2862152)
A security issue has been identified in a Microsoft software
product that could affect your system. You can help protect your
system by installing this update from Microsoft. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article. After you install
this update, you may have to restart your system.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2852386)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Security Update for Windows 7 for x64-based Systems (KB2584146)
A security issue has been identified that could allow an unauthenticated
remote attacker to compromise your system and gain control over
it. You can help protect your system by installing this update
from Microsoft. After you install this update, you may have to
restart your system.
1/05/2014 Internet Explorer 11 for Windows 7 for x64-based Systems
Download the fast and fluid browser recommended for Windows 7.
Internet Explorer 11. Fast and fluid for Windows 7.
• Fast.
Fast at loading sites and fluid as you navigate through them.
• Easy. Seamless with Windows, it just works the way you want.
• Safer. Better protection from threats and increased privacy
online.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2709981)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2830477)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Acer Inc. – Display – Acer P241W (HDMI)
Acer Inc. Display software update released in September, 2007
1/05/2014 nVidia – Network – NVIDIA nForce Networking Controller
nVidia Network software update released in August, 2010
1/05/2014 Update for Windows 7 for x64-based Systems (KB2592687)
The Remote Desktop Protocol 8.0 update enables you to use the
new Remote Desktop Services features. These features are introduced
in Windows 8 and in Windows Server 2012 and are available for
computers that are running Windows 7 Service Pack 1 or Windows
Server 2008 R2 Service Pack 1. After you install this item, you
may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB2574819)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 ATI Technologies Inc. – Display – ATI Radeon HD 5450
ATI Technologies Inc. Display software update released in January,
2011
1/05/2014 Creative – Other hardware – SB 5.1 VX
Creative Other hardware software update released in October,
2009
1/05/2014 Platform Update for Windows 7 x64-Edition (KB2670838)
Install this update to resolve issues in Windows. For a complete
listing of the issues that are included in this update, see the
associated Microsoft Knowledge Base article for more information.
After you install this item, you may have to restart your computer.
1/05/2014 Update for Windows 7 for x64-based Systems (KB971033)
This update to Windows Activation Technologies detects activation
exploits and tampering to key Windows system files. These exploits
try to bypass regular Windows activation and are sometimes included
within counterfeit copies of Windows.
1/05/2014 Windows Update Agent 7.6.7600.256
The Windows Update Agent enables your computer to search for
and install updates from an update service. The agent can automatically
update itself as needed to communicate with the update service
when Windows searches for new updates.
System Folders
Application Data C:ProgramData
Cookies C:Usersr3b3lw0lfAppDataRoamingMicrosoftWindowsCookies
Desktop C:Usersr3b3lw0lfDesktop
Documents C:UsersPublicDocuments
Fonts C:WindowsFonts
Global Favorites C:Usersr3b3lw0lfFavorites
Internet History C:Usersr3b3lw0lfAppDataLocalMicrosoftWindowsHistory
Local Application Data C:Usersr3b3lw0lfAppDataLocal
Music C:UsersPublicMusic
Path for burning CD C:Usersr3b3lw0lfAppDataLocalMicrosoftWindowsBurnBurn
Physical Desktop C:Usersr3b3lw0lfDesktop
Pictures C:UsersPublicPictures
Program Files C:Program Files
Public Desktop C:UsersPublicDesktop
Start Menu C:ProgramDataMicrosoftWindowsStart Menu
Start Menu Programs C:ProgramDataMicrosoftWindowsStart MenuPrograms
Startup C:ProgramDataMicrosoftWindowsStart MenuProgramsStartup
Templates C:ProgramDataMicrosoftWindowsTemplates
Temporary Internet Files C:Usersr3b3lw0lfAppDataLocalMicrosoftWindowsTemporary Internet Files
User Favorites C:Usersr3b3lw0lfFavorites
Videos C:UsersPublicVideos
Windows Directory C:Windows
Windows/System C:Windowssystem32
Process List
atieclxx.exe
Process ID 1064
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32atieclxx.exe
Memory Usage 216 KB
Peak Memory Usage 6.16 MB
atiesrxx.exe
Process ID 764
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32atiesrxx.exe
Memory Usage 160 KB
Peak Memory Usage 4.06 MB
audiodg.exe
Process ID 236
User LOCAL SERVICE
Domain NT AUTHORITY
Memory Usage 16 MB
Peak Memory Usage 20 MB
csrss.exe
Process ID 348
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32csrss.exe
Memory Usage 1.46 MB
Peak Memory Usage 4.15 MB
csrss.exe
Process ID 432
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32csrss.exe
Memory Usage 11 MB
Peak Memory Usage 25 MB
CTAudSvc.exe
Process ID 340
User SYSTEM
Domain NT AUTHORITY
Path C:Program Files (x86)CreativeShared FilesCTAudSvc.exe
Memory Usage 136 KB
Peak Memory Usage 4.32 MB
dwm.exe
Process ID 1916
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Windowssystem32Dwm.exe
Memory Usage 400 KB
Peak Memory Usage 9.27 MB
explorer.exe
Process ID 2076
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:WindowsExplorer.EXE
Memory Usage 40 MB
Peak Memory Usage 59 MB
firefox.exe
Process ID 4048
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program Files (x86)Aurorafirefox.exe
Memory Usage 202 MB
Peak Memory Usage 377 MB
HPNetworkCommunicator.exe
Process ID 3200
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program FilesHPHP Deskjet 3520 seriesBinHPNetworkCommunicator.exe
Memory Usage 1.07 MB
Peak Memory Usage 8.16 MB
HPNetworkCommunicatorCom.exe
Process ID 3040
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program FilesHPHP Deskjet 3520 seriesBinHPNetworkCommunicatorCom.exe
Memory Usage 2.57 MB
Peak Memory Usage 9.41 MB
hpwuschd2.exe
Process ID 2656
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program Files (x86)HPHP Software Updatehpwuschd2.exe
Memory Usage 404 KB
Peak Memory Usage 3.46 MB
jusched.exe
Process ID 2668
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program Files (x86)Common FilesJavaJava Updatejusched.exe
Memory Usage 140 KB
Peak Memory Usage 4.18 MB
KHALMNPR.exe
Process ID 2736
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program FilesCommon FilesLogiShrdKHAL3KHALMNPR.EXE
Memory Usage 1.07 MB
Peak Memory Usage 10 MB
Lightshot.exe
Process ID 2456
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Usersr3b3lw0lfAppDataLocalSkillbrainslightshot5.1.0.15Lightshot.exe
Memory Usage 548 KB
Peak Memory Usage 6.35 MB
lsass.exe
Process ID 484
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32lsass.exe
Memory Usage 2.99 MB
Peak Memory Usage 11 MB
lsm.exe
Process ID 492
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32lsm.exe
Memory Usage 1.30 MB
Peak Memory Usage 4.04 MB
mscorsvw.exe
Process ID 3832
User SYSTEM
Domain NT AUTHORITY
Path C:WindowsMicrosoft.NETFrameworkv4.0.30319mscorsvw.exe
Memory Usage 1.83 MB
Peak Memory Usage 8.82 MB
mscorsvw.exe
Process ID 3964
User SYSTEM
Domain NT AUTHORITY
Path C:WindowsMicrosoft.NETFramework64v4.0.30319mscorsvw.exe
Memory Usage 4.96 MB
Peak Memory Usage 11 MB
nSvcAppFlt.exe
Process ID 1604
User SYSTEM
Domain NT AUTHORITY
Path C:Program FilesNVIDIA CorporationNetworkAccessManagerbin32nSvcAppFlt.exe
Memory Usage 1.27 MB
Peak Memory Usage 5.72 MB
nSvcIp.exe
Process ID 1640
User SYSTEM
Domain NT AUTHORITY
Path C:Program FilesNVIDIA CorporationNetworkAccessManagerbin32nSvcIp.exe
Memory Usage 928 KB
Peak Memory Usage 7.78 MB
RocketDock.exe
Process ID 2440
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program Files (x86)RocketDockRocketDock.exe
Memory Usage 5.52 MB
Peak Memory Usage 12 MB
rundll32.exe
Process ID 676
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:WindowsSystem32rundll32.exe
Memory Usage 896 KB
Peak Memory Usage 5.98 MB
rundll32.exe
Process ID 2636
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:WindowsSysWOW64rundll32.exe
Memory Usage 440 KB
Peak Memory Usage 6.97 MB
rundll32.exe
Process ID 2528
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Windowssystem32RunDll32.exe
Memory Usage 5.14 MB
Peak Memory Usage 14 MB
ScanToPCActivationApp.exe
Process ID 2448
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program FilesHPHP Deskjet 3520 seriesBinScanToPCActivationApp.exe
Memory Usage 1.46 MB
Peak Memory Usage 12 MB
SearchFilterHost.exe
Process ID 2192
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32SearchFilterHost.exe
Memory Usage 12 MB
Peak Memory Usage 13 MB
SearchIndexer.exe
Process ID 2652
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32SearchIndexer.exe
Memory Usage 13 MB
Peak Memory Usage 16 MB
SearchProtocolHost.exe
Process ID 3220
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32SearchProtocolHost.exe
Memory Usage 13 MB
Peak Memory Usage 14 MB
services.exe
Process ID 468
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32services.exe
Memory Usage 3.57 MB
Peak Memory Usage 14 MB
SetPoint.exe
Process ID 2392
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program FilesLogitechSetPointPSetPoint.exe
Memory Usage KB
Peak Memory Usage 17 MB
Skype.exe
Process ID 2428
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program Files (x86)SkypePhoneSkype.exe
Memory Usage 20 MB
Peak Memory Usage 80 MB
smss.exe
Process ID 256
User SYSTEM
Domain NT AUTHORITY
Path SystemRootSystem32smss.exe
Memory Usage 80 KB
Peak Memory Usage 1.10 MB
Speccy64.exe
Process ID 3276
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program FilesSpeccySpeccy64.exe
Memory Usage 25 MB
Peak Memory Usage 26 MB
spoolsv.exe
Process ID 1280
User SYSTEM
Domain NT AUTHORITY
Path C:WindowsSystem32spoolsv.exe
Memory Usage 2.83 MB
Peak Memory Usage 14 MB
svchost.exe
Process ID 1476
User LOCAL SERVICE
Domain NT AUTHORITY
Path C:Windowssystem32svchost.exe
Memory Usage 1.36 MB
Peak Memory Usage 9.50 MB
svchost.exe
Process ID 1412
User LOCAL SERVICE
Domain NT AUTHORITY
Path C:Windowssystem32svchost.exe
Memory Usage 2.69 MB
Peak Memory Usage 13 MB
svchost.exe
Process ID 1316
User LOCAL SERVICE
Domain NT AUTHORITY
Path C:Windowssystem32svchost.exe
Memory Usage 6.36 MB
Peak Memory Usage 47 MB
svchost.exe
Process ID 1108
User NETWORK SERVICE
Domain NT AUTHORITY
Path C:Windowssystem32svchost.exe
Memory Usage 4.62 MB
Peak Memory Usage 13 MB
svchost.exe
Process ID 412
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32svchost.exe
Memory Usage 1.14 MB
Peak Memory Usage 5.12 MB
svchost.exe
Process ID 936
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32svchost.exe
Memory Usage 110 MB
Peak Memory Usage 353 MB
svchost.exe
Process ID 912
User LOCAL SERVICE
Domain NT AUTHORITY
Path C:Windowssystem32svchost.exe
Memory Usage 3.59 MB
Peak Memory Usage 16 MB
svchost.exe
Process ID 848
User LOCAL SERVICE
Domain NT AUTHORITY
Path C:WindowsSystem32svchost.exe
Memory Usage 7.59 MB
Peak Memory Usage 21 MB
svchost.exe
Process ID 3348
User LOCAL SERVICE
Domain NT AUTHORITY
Path C:WindowsSystem32svchost.exe
Memory Usage 4.61 MB
Peak Memory Usage 12 MB
svchost.exe
Process ID 720
User NETWORK SERVICE
Domain NT AUTHORITY
Path C:Windowssystem32svchost.exe
Memory Usage 3.35 MB
Peak Memory Usage 7.68 MB
svchost.exe
Process ID 644
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32svchost.exe
Memory Usage 3.28 MB
Peak Memory Usage 9.43 MB
svchost.exe
Process ID 888
User SYSTEM
Domain NT AUTHORITY
Path C:WindowsSystem32svchost.exe
Memory Usage 79 MB
Peak Memory Usage 112 MB
svchost.exe
Process ID 1628
User SYSTEM
Domain NT AUTHORITY
Path C:WindowsSystem32svchost.exe
Memory Usage 21 MB
Peak Memory Usage 68 MB
System
Process ID 4
Memory Usage 824 KB
Peak Memory Usage 9.77 MB
System Idle Process
Process ID 0
taskeng.exe
Process ID 3932
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32taskeng.exe
Memory Usage 1.11 MB
Peak Memory Usage 4.72 MB
taskhost.exe
Process ID 2340
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Windowssystem32taskhost.exe
Memory Usage 4.09 MB
Peak Memory Usage 11 MB
TeamViewer_Service.exe
Process ID 1516
User SYSTEM
Domain NT AUTHORITY
Path C:Program Files (x86)TeamViewerVersion9TeamViewer_Service.exe
Memory Usage 1.91 MB
Peak Memory Usage 15 MB
TrustedInstaller.exe
Process ID 2780
User SYSTEM
Domain NT AUTHORITY
Path C:WindowsservicingTrustedInstaller.exe
Memory Usage 17 MB
Peak Memory Usage 95 MB
uTorrent.exe
Process ID 2464
User r3b3lw0lf
Domain r3b3lw0lf-PC
Path C:Program Files (x86)uTorrentuTorrent.exe
Memory Usage 4.56 MB
Peak Memory Usage 12 MB
wininit.exe
Process ID 416
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32wininit.exe
Memory Usage 172 KB
Peak Memory Usage 4.31 MB
winlogon.exe
Process ID 584
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32winlogon.exe
Memory Usage 1.16 MB
Peak Memory Usage 8.09 MB
WmiPrvSE.exe
Process ID 3300
User NETWORK SERVICE
Domain NT AUTHORITY
Path C:Windowssystem32wbemwmiprvse.exe
Memory Usage 11 MB
Peak Memory Usage 12 MB
WmiPrvSE.exe
Process ID 3700
User SYSTEM
Domain NT AUTHORITY
Path C:Windowssystem32wbemwmiprvse.exe
Memory Usage 6.09 MB
Peak Memory Usage 6.09 MB
wmpnetwk.exe
Process ID 3096
User NETWORK SERVICE
Domain NT AUTHORITY
Path C:Program FilesWindows Media Playerwmpnetwk.exe
Memory Usage 7.22 MB
Peak Memory Usage 29 MB
Security Options
Accounts: Administrator account status Disabled
Accounts: Guest account status Disabled
Accounts: Limit local account use of blank passwords to console logon only Enabled
Accounts: Rename administrator account Administrator
Accounts: Rename guest account Guest
Audit: Audit the access of global system objects Disabled
Audit: Audit the use of Backup and Restore privilege Disabled
Audit: Force audit policy subcategory settings (Windows Vista or later) to override audit policy category settings Not Defined
Audit: Shut down system immediately if unable to log security audits Disabled
DCOM: Machine Access Restrictions in Security Descriptor Definition Language (SDDL) syntax Not Defined
DCOM: Machine Launch Restrictions in Security Descriptor Definition Language (SDDL) syntax Not Defined
Devices: Allow undock without having to log on Enabled
Devices: Allowed to format and eject removable media Not Defined
Devices: Prevent users from installing printer drivers Disabled
Devices: Restrict CD-ROM access to locally logged-on user only Not Defined
Devices: Restrict floppy access to locally logged-on user only Not Defined
Domain controller: Allow server operators to schedule tasks Not Defined
Domain controller: LDAP server signing requirements Not Defined
Domain controller: Refuse machine account password changes Not Defined
Domain member: Digitally encrypt or sign secure channel data (always) Enabled
Domain member: Digitally encrypt secure channel data (when possible) Enabled
Domain member: Digitally sign secure channel data (when possible) Enabled
Domain member: Disable machine account password changes Disabled
Domain member: Maximum machine account password age 30 days
Domain member: Require strong (Windows 2000 or later) session key Enabled
Interactive logon: Display user information when the session is locked Not Defined
Interactive logon: Do not display last user name Disabled
Interactive logon: Do not require CTRL+ALT+DEL Not Defined
Interactive logon: Message text for users attempting to log on
Interactive logon: Message title for users attempting to log on
Interactive logon: Number of previous logons to cache (in case domain controller is not available) 10 logons
Interactive logon: Prompt user to change password before expiration 5 days
Interactive logon: Require Domain Controller authentication to unlock workstation Disabled
Interactive logon: Require smart card Disabled
Interactive logon: Smart card removal behavior No Action
Microsoft network client: Digitally sign communications (always) Disabled
Microsoft network client: Digitally sign communications (if server agrees) Enabled
Microsoft network client: Send unencrypted password to third-party SMB servers Disabled
Microsoft network server: Amount of idle time required before suspending session 15 minutes
Microsoft network server: Digitally sign communications (always) Disabled
Microsoft network server: Digitally sign communications (if client agrees) Disabled
Microsoft network server: Disconnect clients when logon hours expire Enabled
Microsoft network server: Server SPN target name validation level Not Defined
Network access: Allow anonymous SID/Name translation Disabled
Network access: Do not allow anonymous enumeration of SAM accounts Enabled
Network access: Do not allow anonymous enumeration of SAM accounts and shares Disabled
Network access: Do not allow storage of passwords and credentials for network authentication Disabled
Network access: Let Everyone permissions apply to anonymous users Disabled
Network access: Named Pipes that can be accessed anonymously
Network access: Remotely accessible registry paths SystemCurrentControlSetControlProductOptions,SystemCurrentControlSetControlServer Applications,SoftwareMicrosoftWindows NTCurrentVersion
Network access: Remotely accessible registry paths and sub-paths SystemCurrentControlSetControlPrintPrinters,SystemCurrentControlSetServicesEventlog,SoftwareMicrosoftOLAP Server,SoftwareMicrosoftWindows NTCurrentVersionPrint,SoftwareMicrosoftWindows NTCurrentVersionWindows,SystemCurrentControlSetControlContentIndex,SystemCurrentControlSetControlTerminal Server,SystemCurrentControlSetControlTerminal ServerUserConfig,SystemCurrentControlSetControlTerminal ServerDefaultUserConfiguration,SoftwareMicrosoftWindows NTCurrentVersionPerflib,SystemCurrentControlSetServicesSysmonLog
Network access: Restrict anonymous access to Named Pipes and Shares Enabled
Network access: Shares that can be accessed anonymously Not Defined
Network access: Sharing and security model for local accounts Classic – local users authenticate as themselves
Network security: Allow Local System to use computer identity for NTLM Not Defined
Network security: Allow LocalSystem NULL session fallback Not Defined
Network Security: Allow PKU2U authentication requests to this computer to use online identities Not Defined
Network security: Configure encryption types allowed for Kerberos Not Defined
Network security: Do not store LAN Manager hash value on next password change Enabled
Network security: Force logoff when logon hours expire Disabled
Network security: LAN Manager authentication level Not Defined
Network security: LDAP client signing requirements Negotiate signing
Network security: Minimum session security for NTLM SSP based (including secure RPC) clients Require 128-bit encryption
Network security: Minimum session security for NTLM SSP based (including secure RPC) servers Require 128-bit encryption
Network security: Restrict NTLM: Add remote server exceptions for NTLM authentication Not Defined
Network security: Restrict NTLM: Add server exceptions in this domain Not Defined
Network security: Restrict NTLM: Audit Incoming NTLM Traffic Not Defined
Network security: Restrict NTLM: Audit NTLM authentication in this domain Not Defined
Network security: Restrict NTLM: Incoming NTLM traffic Not Defined
Network security: Restrict NTLM: NTLM authentication in this domain Not Defined
Network security: Restrict NTLM: Outgoing NTLM traffic to remote servers Not Defined
Recovery console: Allow automatic administrative logon Disabled
Recovery console: Allow floppy copy and access to all drives and all folders Disabled
Shutdown: Allow system to be shut down without having to log on Enabled
Shutdown: Clear virtual memory pagefile Disabled
System cryptography: Force strong key protection for user keys stored on the computer Not Defined
System cryptography: Use FIPS compliant algorithms for encryption, hashing, and signing Disabled
System objects: Require case insensitivity for non-Windows subsystems Enabled
System objects: Strengthen default permissions of internal system objects (e.g. Symbolic Links) Enabled
System settings: Optional subsystems Posix
System settings: Use Certificate Rules on Windows Executables for Software Restriction Policies Disabled
User Account Control: Admin Approval Mode for the Built-in Administrator account Disabled
User Account Control: Allow UIAccess applications to prompt for elevation without using the secure desktop Disabled
User Account Control: Behavior of the elevation prompt for administrators in Admin Approval Mode Prompt for consent for non-Windows binaries
User Account Control: Behavior of the elevation prompt for standard users Prompt for credentials
User Account Control: Detect application installations and prompt for elevation Enabled
User Account Control: Only elevate executables that are signed and validated Disabled
User Account Control: Only elevate UIAccess applications that are installed in secure locations Enabled
User Account Control: Run all administrators in Admin Approval Mode Enabled
User Account Control: Switch to the secure desktop when prompting for elevation Enabled
User Account Control: Virtualize file and registry write failures to per-user locations Enabled
Device Tree
ACPI x64-based PC
Microsoft ACPI-Compliant System
ACPI Fixed Feature Button
ACPI Power Button
AMD Athlon 64 X2 Dual Core Processor 3800+
AMD Athlon 64 X2 Dual Core Processor 3800+
System board
PCI bus
AMD Address Map Configuration
AMD DRAM and HyperTransport Trace Mode Configuration
AMD HyperTransport Configuration
AMD Miscellaneous Configuration
Motherboard resources
NVIDIA nForce 10/100/1000 Mbps Ethernet
NVIDIA nForce PCI System Management
PCI standard PCI-to-PCI bridge
PCI standard PCI-to-PCI bridge
PCI standard RAM Controller
PCI standard RAM Controller
PCI standard ISA bridge
ATK0110 ACPI UTILITY
Communications Port (COM1)
Direct memory access controller
High precision event timer
Microsoft PS/2 Mouse
Motherboard resources
Motherboard resources
Motherboard resources
Numeric data processor
Programmable interrupt controller
Standard PS/2 Keyboard
System CMOS/real time clock
System speaker
System timer
Standard floppy disk controller
Floppy disk drive
Printer Port (LPT1)
Printer Port Logical Interface
Standard OpenHCD USB Host Controller
USB Root Hub
Unknown Device
Standard Enhanced PCI to USB Host Controller
USB Root Hub
PCI standard PCI-to-PCI bridge
1394 OHCI Compliant Host Controller (Legacy)
SB 5.1 VX
High Definition Audio Controller
High Definition Audio Device
Standard Dual Channel PCI IDE Controller
ATA Channel 1
ATA Channel 0
Philips DVD+RW DVD8601 ATA Device
PIONEER DVD-RW DVR-110D ATA Device
NVIDIA nForce Serial ATA Controller
MAXTOR S TM3160215AS SCSI Disk Device
NVIDIA nForce Serial ATA Controller
ST1000DM 003-9YN162 SCSI Disk Device
PCI standard PCI-to-PCI bridge
ATI Radeon HD 5450
Acer P241W
High Definition Audio Controller
High Definition Audio Device
CPU
AMD Athlon 64 X2 3800+
Cores 2
Threads 2
Name AMD Athlon 64 X2 3800+
Code Name Windsor
Package Socket AM2 (940)
Technology 90nm
Specification AMD Athlon 64 X2 Dual Core Processor 3800+
Family F
Extended Family F
Model B
Extended Model 4B
Stepping 2
Revision BH-F2
Instructions MMX (+), 3DNow! (+), SSE, SSE2, SSE3, AMD 64, NX, VMX
Virtualization Supported, Disabled
Hyperthreading Not supported
Fan Speed 3515 RPM
Bus Speed 200.9 MHz
Rated Bus Speed 1004.4 MHz
Stock Core Speed 2000 MHz
Stock Bus Speed 200 MHz
Average Temperature 32 °C
Caches
L1 Data Cache Size 2 x 64 KBytes
L1 Instructions Cache Size 2 x 64 KBytes
L2 Unified Cache Size 2 x 512 KBytes
Cores
Core 0
Core Speed 2008.8 MHz
Multiplier x 10.0
Bus Speed 200.9 MHz
Rated Bus Speed 1004.4 MHz
Temperature 28 °C
Threads APIC ID: 0
Core 1
Core Speed 2008.8 MHz
Multiplier x 10.0
Bus Speed 200.9 MHz
Rated Bus Speed 1004.4 MHz
Temperature 35 °C
Threads APIC ID: 1
RAM
Memory slots
Total memory slots 4
Used memory slots 4
Free memory slots 0
Memory
Type DDR2
Size 6144 MBytes
Channels # Single
DRAM Frequency 334.8 MHz
CAS# Latency (CL) 5 clocks
RAS# to CAS# Delay (tRCD) 5 clocks
RAS# Precharge (tRP) 5 clocks
Cycle Time (tRAS) 15 clocks
Bank Cycle Time (tRC) 21 clocks
Command Rate (CR) 2T
Physical Memory
Memory Usage 27 %
Total Physical 6.00 GB
Available Physical 4.34 GB
Total Virtual 12 GB
Available Virtual 10 GB
SPD
Number Of SPD Modules 4
Slot #1
Type DDR2
Size 1024 MBytes
Manufacturer Nanya Technology
Max Bandwidth PC2-5300 (333 MHz)
Part Number M2Y1G64TU8HB0B-3C
Serial Number D9642911
Week/year 08 / 07
Timing table
JEDEC #1
Frequency 200.0 MHz
CAS# Latency 3.0
RAS# To CAS# 3
RAS# Precharge 3
tRAS 9
tRC 12
Voltage 1.800 V
JEDEC #2
Frequency 266.7 MHz
CAS# Latency 4.0
RAS# To CAS# 4
RAS# Precharge 4
tRAS 12
tRC 16
Voltage 1.800 V
JEDEC #3
Frequency 333.3 MHz
CAS# Latency 5.0
RAS# To CAS# 5
RAS# Precharge 5
tRAS 15
tRC 20
Voltage 1.800 V
Slot #2
Type DDR2
Size 2048 MBytes
Manufacturer Kingston
Max Bandwidth PC2-5300 (333 MHz)
Part Number 2G-UDIMM
Serial Number D0293D3A
Week/year 26 / 08
Timing table
JEDEC #1
Frequency 200.0 MHz
CAS# Latency 3.0
RAS# To CAS# 3
RAS# Precharge 3
tRAS 9
tRC 12
Voltage 1.800 V
JEDEC #2
Frequency 266.7 MHz
CAS# Latency 4.0
RAS# To CAS# 4
RAS# Precharge 4
tRAS 12
tRC 16
Voltage 1.800 V
JEDEC #3
Frequency 333.3 MHz
CAS# Latency 5.0
RAS# To CAS# 5
RAS# Precharge 5
tRAS 15
tRC 20
Voltage 1.800 V
Slot #3
Type DDR2
Size 1024 MBytes
Manufacturer Hyundai Electronics
Max Bandwidth PC2-5300 (333 MHz)
Part Number HYMP512U64CP8-Y5
Serial Number 00002017
Week/year 17 / 07
Timing table
JEDEC #1
Frequency 200.0 MHz
CAS# Latency 3.0
RAS# To CAS# 3
RAS# Precharge 3
tRAS 9
tRC 12
Voltage 1.800 V
JEDEC #2
Frequency 266.7 MHz
CAS# Latency 4.0
RAS# To CAS# 4
RAS# Precharge 4
tRAS 12
tRC 16
Voltage 1.800 V
JEDEC #3
Frequency 333.3 MHz
CAS# Latency 5.0
RAS# To CAS# 5
RAS# Precharge 5
tRAS 15
tRC 20
Voltage 1.800 V
Slot #4
Type DDR2
Size 2048 MBytes
Manufacturer Kingston
Max Bandwidth PC2-5300 (333 MHz)
Part Number 2G-UDIMM
Serial Number B528AFE3
Week/year 26 / 08
Timing table
JEDEC #1
Frequency 200.0 MHz
CAS# Latency 3.0
RAS# To CAS# 3
RAS# Precharge 3
tRAS 9
tRC 12
Voltage 1.800 V
JEDEC #2
Frequency 266.7 MHz
CAS# Latency 4.0
RAS# To CAS# 4
RAS# Precharge 4
tRAS 12
tRC 16
Voltage 1.800 V
JEDEC #3
Frequency 333.3 MHz
CAS# Latency 5.0
RAS# To CAS# 5
RAS# Precharge 5
tRAS 15
tRC 20
Voltage 1.800 V
Motherboard
Manufacturer ASUSTeK Computer INC.
Model M2N-MX (CPU 1)
Chipset Vendor NVIDIA
Chipset Model MCP61
Chipset Revision A2
Southbridge Vendor NVIDIA
Southbridge Model MCP61
Southbridge Revision A2
System Temperature 35 °C
BIOS
Brand American Megatrends Inc.
Version 0907
Date 27/09/2007
Voltage
CPU CORE 1.312 V
+3.3V 3.408 V
+5V 4.892 V
+12V 12.608 V
CMOS BATTERY 3.184 V
PCI Data
Slot PCI-E
Slot Type PCI-E
Slot Usage In Use
Data lanes x16
Slot Designation PCIEX16
Characteristics 3.3V, Shared
Slot Number 0
Slot PCI-E
Slot Type PCI-E
Slot Usage Available
Data lanes x1
Slot Designation PCIEX1
Characteristics 3.3V, Shared, PME
Slot Number 1
Slot PCI
Slot Type PCI
Slot Usage In Use
Bus Width 32 bit
Slot Designation PCI1
Characteristics 3.3V, Shared, PME
Slot Number 2
Slot PCI
Slot Type PCI
Slot Usage In Use
Bus Width 32 bit
Slot Designation PCI2
Characteristics 3.3V, Shared, PME
Slot Number 3
Graphics
Monitor
Name Acer P241W on ATI Radeon HD 5450
Current Resolution 1920×1200 pixels
Work Resolution 1795×1200 pixels
State Enabled, Primary, Output devices support
Monitor Width 1920
Monitor Height 1200
Monitor BPP 32 bits per pixel
Monitor Frequency 60 Hz
Device \.DISPLAY1Monitor0
ATI Radeon HD 5450
Manufacturer ATI
Model Radeon HD 5450
GPU Cedar
Device ID 1002-68F9
Subvendor Gigabyte (1458)
Current Performance Level Level 0
Voltage 0.900 V
Die Size 59 mm²
Release Date Feb 4, 2010
DirectX Support 11.0
DirectX Shader Model 5.0
OpenGL Support 4.2
GPU Clock 650.0 MHz
Temperature 49 °C
Core Voltage 0.900 V
Driver version 8.821.0.0
BIOS Version xxx-xxx-xxx
ROPs 4
Shaders 80 unified
Memory Type DDR2
Bus Width 32×2 (64 bit)
Pixel Fillrate 2.6 GPixels/s
Noise Level Quiet
Max Power Draw 20 Watts
Count of performance levels : 3
Level 1
GPU Clock 157 MHz
Memory Clock 200 MHz
Level 2
GPU Clock 650 MHz
Memory Clock 500 MHz
Level 3
GPU Clock 650 MHz
Memory Clock 500 MHz
Storage
Hard drives
MAXTOR S TM3160215AS SCSI Disk Device
Manufacturer Maxtor
Heads 16
Cylinders 19,457
Tracks 4,961,535
Sectors 312,576,705
SATA type SATA-I 1.5Gb/s
Device type Fixed
ATA Standard ATA/ATAPI-7
Serial Number 5RA539J5
Firmware Version Number 4.AAB
LBA Size 48-bit LBA
Power On Count 5316 times
Power On Time 8.5 days
Features S.M.A.R.T., NCQ
Max. Transfer Mode SATA I 1.5Gb/s
Used Transfer Mode SATA I 1.5Gb/s
Interface SATA
Capacity 149 GB
Real size 160,041,885,696 bytes
RAID Type None
S.M.A.R.T
Status Good
Temperature 41 °C
Temperature Range OK (less than 50 °C)
S.M.A.R.T attributes
01
Attribute*name Read Error Rate
Real value 0
Current 100
Worst 253
Threshold 6
Raw Value 0000000000
Status Good
03
Attribute*name Spin-Up Time
Real value 0 ms
Current 98
Worst 97
Threshold 0
Raw Value 0000000000
Status Good
04
Attribute*name Start/Stop Count
Real value 5,329
Current 95
Worst 95
Threshold 20
Raw Value 00000014D1
Status Good
05
Attribute*name Reallocated Sectors Count
Real value 0
Current 100
Worst 100
Threshold 36
Raw Value 0000000000
Status Good
07
Attribute*name Seek Error Rate
Real value 0
Current 87
Worst 60
Threshold 30
Raw Value 001F7479A4
Status Good
09
Attribute*name Power-On Hours (POH)
Real value 8d 13h
Current 86
Worst 86
Threshold 0
Raw Value 0000003027
Status Good
0A
Attribute*name Spin Retry Count
Real value 0
Current 100
Worst 100
Threshold 97
Raw Value 0000000000
Status Good
0C
Attribute*name Device Power Cycle Count
Real value 5,316
Current 95
Worst 95
Threshold 20
Raw Value 00000014C4
Status Good
BB
Attribute*name Reported Uncorrectable Errors
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
BD
Attribute*name High Fly Writes (WDC)
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
BE
Attribute*name Temperature Difference from 100
Real value 41 °C
Current 59
Worst 47
Threshold 45
Raw Value 0029290029
Status Good
C2
Attribute*name Temperature
Real value 41 °C
Current 41
Worst 53
Threshold 0
Raw Value 0000000029
Status Good
C3
Attribute*name Hardware ECC Recovered
Real value 0
Current 86
Worst 68
Threshold 0
Raw Value 0009885C26
Status Good
C5
Attribute*name Current Pending Sector Count
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
C6
Attribute*name Uncorrectable Sector Count
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
C7
Attribute*name UltraDMA CRC Error Count
Real value 0
Current 200
Worst 200
Threshold 0
Raw Value 0000000000
Status Good
C8
Attribute*name Write Error Rate / Multi-Zone Error Rate
Real value 0
Current 100
Worst 253
Threshold 0
Raw Value 0000000000
Status Good
CA
Attribute*name Data Address Mark errors
Real value 0
Current 100
Worst 253
Threshold 0
Raw Value 0000000000
Status Good
Partition 0
Partition ID Disk #0, Partition #0
Disk Letter C:
File System NTFS
Volume Serial Number 6865BBA9
Size 149 GB
Used Space 32.3 GB (21%)
Free Space 116 GB (79%)
ST1000DM 003-9YN162 SCSI Disk Device
Manufacturer Seagate
Heads 16
Cylinders 626,933
Tracks 102,817,012
Sectors 1,953,523,228
SATA type SATA-III 6.0Gb/s
Device type Fixed
ATA Standard ATA8-ACS
Serial Number Z1D1KJDT
Firmware Version Number CC4B
LBA Size 48-bit LBA
Power On Count 244 times
Power On Time 652.8 days
Speed 7200 RPM
Features S.M.A.R.T., APM, NCQ
Max. Transfer Mode SATA III 6.0Gb/s
Used Transfer Mode SATA II 3.0Gb/s
Interface SATA
Capacity 931 GB
Real size 1,000,204,886,016 bytes
RAID Type None
S.M.A.R.T
Status Good
Temperature 36 °C
Temperature Range OK (less than 50 °C)
S.M.A.R.T attributes
01
Attribute*name Read Error Rate
Real value 0
Current 106
Worst 99
Threshold 6
Raw Value 0000A9EFD8
Status Good
03
Attribute*name Spin-Up Time
Real value 0 ms
Current 98
Worst 97
Threshold 0
Raw Value 0000000000
Status Good
04
Attribute*name Start/Stop Count
Real value 246
Current 100
Worst 100
Threshold 20
Raw Value 00000000F6
Status Good
05
Attribute*name Reallocated Sectors Count
Real value 0
Current 100
Worst 100
Threshold 36
Raw Value 0000000000
Status Good
07
Attribute*name Seek Error Rate
Real value 0
Current 82
Worst 60
Threshold 30
Raw Value 000BB8C5BC
Status Good
09
Attribute*name Power-On Hours (POH)
Real value 652d 20h
Current 83
Worst 83
Threshold 0
Raw Value 0000003D34
Status Good
0A
Attribute*name Spin Retry Count
Real value 0
Current 100
Worst 100
Threshold 97
Raw Value 0000000000
Status Good
0C
Attribute*name Device Power Cycle Count
Real value 244
Current 100
Worst 100
Threshold 20
Raw Value 00000000F4
Status Good
B7
Attribute*name SATA Downshift Error Count
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
B8
Attribute*name End-to-End error / IOEDC
Real value 0
Current 100
Worst 100
Threshold 99
Raw Value 0000000000
Status Good
BB
Attribute*name Reported Uncorrectable Errors
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
BC
Attribute*name Command Timeout
Real value 6
Current 100
Worst 99
Threshold 0
Raw Value 0000000006
Status Good
BD
Attribute*name High Fly Writes (WDC)
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
BE
Attribute*name Airflow Temperature
Real value 36 °C
Current 64
Worst 47
Threshold 45
Raw Value 0024230024
Status Good
BF
Attribute*name G-sense error rate
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
C0
Attribute*name Power-off Retract Count
Real value 78
Current 100
Worst 100
Threshold 0
Raw Value 000000004E
Status Good
C1
Attribute*name Load/Unload Cycle Count
Real value 18,017
Current 91
Worst 91
Threshold 0
Raw Value 0000004661
Status Good
C2
Attribute*name Temperature
Real value 36 °C
Current 36
Worst 53
Threshold 0
Raw Value 0000000024
Status Good
C5
Attribute*name Current Pending Sector Count
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
C6
Attribute*name Uncorrectable Sector Count
Real value 0
Current 100
Worst 100
Threshold 0
Raw Value 0000000000
Status Good
C7
Attribute*name UltraDMA CRC Error Count
Real value 0
Current 200
Worst 200
Threshold 0
Raw Value 0000000000
Status Good
F0
Attribute*name Head Flying Hours
Real value 634d 13h
Current 100
Worst 253
Threshold 0
Raw Value 0000003B7D
Status Good
F1
Attribute*name Total LBAs Written
Real value 1,246,848,481,272
Current 100
Worst 253
Threshold 0
Raw Value 004DF5F7F8
Status Good
F2
Attribute*name Total LBAs Read
Real value 2,565,196,396,183
Current 100
Worst 253
Threshold 0
Raw Value 00419EB697
Status Good
Partition 0
Partition ID Disk #1, Partition #0
Disk Letter D:
File System NTFS
Volume Serial Number 10FC486E
Size 931 GB
Used Space 646 GB (69%)
Free Space 284 GB (31%)
Optical Drives
Philips DVD+RW DVD8601 ATA Device
Media Type DVD Writer
Name Philips DVD+RW DVD8601 ATA Device
Availability Running/Full Power
Capabilities Random Access, Supports Writing, Supports Removable Media
Read capabilities CD-R, CD-RW, CD-ROM, DVD-ROM, DVD-R, DVD+R, DVD+RW, DVD+R DL
Write capabilities CD-R, CD-RW, DVD+R, DVD+RW, DVD+R DL
Config Manager Error Code Device is working properly
Config Manager User Config FALSE
Drive E:
Media Loaded FALSE
SCSI Bus 0
SCSI Logical Unit 0
SCSI Port 0
SCSI Target Id 0
Status OK
PIONEER DVD-RW DVR-110D ATA Device
Media Type DVD Writer
Name PIONEER DVD-RW DVR-110D ATA Device
Availability Running/Full Power
Capabilities Random Access, Supports Writing, Supports Removable Media
Read capabilities CD-R, CD-RW, CD-ROM, DVD-RAM, DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-R DL, DVD+R DL
Write capabilities CD-R, CD-RW, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-R DL, DVD+R DL
Config Manager Error Code Device is working properly
Config Manager User Config FALSE
Drive F:
Media Loaded FALSE
SCSI Bus 0
SCSI Logical Unit 0
SCSI Port 0
SCSI Target Id 1
Status OK
Audio
Sound Cards
High Definition Audio Device
SB 5.1 VX
High Definition Audio Device
Playback Devices
Digital Audio (S/PDIF) (High Definition Audio Device)
Digital Audio (HDMI) (2- High Definition Audio Device)
Speakers (SB 5.1 VX) (default)
Recording Devices
Microphone (SB 5.1 VX)
Line-In (SB 5.1 VX)
Microphone (High Definition Audio Device) (default)
Peripherals
Standard PS/2 Keyboard
Device Kind Keyboard
Device Name Standard PS/2 Keyboard
Vendor (Standard keyboards)
Location plugged into keyboard port
Driver
Date 6-21-2006
Version 6.1.7601.17514
File C:Windowssystem32DRIVERSi8042prt.sys
File C:Windowssystem32DRIVERSkbdclass.sys
Microsoft PS/2 Mouse
Device Kind Mouse
Device Name Microsoft PS/2 Mouse
Vendor Microsoft
Location plugged into PS/2 mouse port
Driver
Date 6-21-2006
Version 6.1.7600.16385
File C:Windowssystem32DRIVERSi8042prt.sys
File C:Windowssystem32DRIVERSmouclass.sys
HP Deskjet 3520 series
Device Kind Printer
Device Name HP Deskjet 3520 series
Vendor HP
Driver
Date 9-6-2012
Version 9.84.0.1189
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}hpdj_3520.gpd
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}HPMACRONAMES.gpd
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}hpvpl09.ini
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}hpvpldrv09.dll
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}hpvplui09.dll
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}hpfime51.dll
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}hpvplres09.dll
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}copyright.txt
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}hpinkstsB011LM.dll
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}hpinkstsB011.dll
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}unidrv.dll
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}unidrvui.dll
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}unires.dll
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}unidrv.hlp
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}locale.gpd
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}stdnames.gpd
File C:Windowssystem32spoolDRIVERSx64{F510EE19-F859-4847-9AAA-9862957F1B80}hpdj_3520_n.inx
File C:Windowssystem32hpinkcoiB011.dll
File C:Windowssystem32hpinkinsB011.exe
File C:Windowssystem32hpinkstsB011LM.dll
HP Deskjet 3520 series (NET)
Device Kind Camera/scanner
Device Name HP Deskjet 3520 series (NET)
Vendor Hewlett-Packard
Driver
Date 7-19-2011
Version 26.0.0.0
File C:Windowssystem32HPWia2_DJ3520.dll
File C:Windowssystem32HPScanTRDrv_DJ3520.dll
File C:Windowssystem32driversserscan.sys
Printers
Fax
Printer Port SHRFAX:
Print Processor winprint
Availability Always
Priority 1
Duplex None
Print Quality 200 * 200 dpi Monochrome
Status Unknown
Driver
Driver Name Microsoft Shared Fax Driver (v4.00)
Driver Path C:Windowssystem32spoolDRIVERSx643FXSDRV.DLL
HP Deskjet 3520 series (Network) (Default Printer)
Printer Port CN36M1C2RY05SY
Print Processor winprint
Availability Always
Priority 1
Duplex None
Print Quality 600 * 600 dpi Color
Status Unknown
Driver
Driver Name HP Deskjet 3520 series (v6.00)
Driver Path C:Windowssystem32spoolDRIVERSx643UNIDRV.DLL
Microsoft XPS Document Writer
Printer Port XPSPort:
Print Processor winprint
Availability Always
Priority 1
Duplex None
Print Quality 600 * 600 dpi Color
Status Unknown
Driver
Driver Name Microsoft XPS Document Writer (v6.00)
Driver Path C:Windowssystem32spoolDRIVERSx643mxdwdrv.dll
Network
You are connected to the internet
Connected through NVIDIA nForce 10/100/1000 Mbps Ethernet
IP Address 192.168.0.21
Subnet mask 255.255.255.0
Gateway server 192.168.0.1
Preferred DNS server 198.142.0.51
Alternate DNS server 211.29.132.12
Alternate DNS server 198.142.235.14
DHCP Enabled
DHCP server 192.168.0.1
External IP Address 211.28.155.203
Adapter Type Ethernet
NetBIOS over TCP/IP Enabled via DHCP
NETBIOS Node Type Hybrid node
Link Speed 91.9 KBps
Computer Name
NetBIOS Name R3B3LW0LF-PC
DNS Name r3b3lw0lf-PC
Membership Part of workgroup
Workgroup WORKGROUP
Remote Desktop
Disabled
Console
State Active
Domain r3b3lw0lf-PC
WinInet Info
LAN Connection
Local system uses a local area network to connect to the Internet
Local system has RAS to connect to the Internet
Wi-Fi Info
Wi-Fi not enabled
WinHTTPInfo
WinHTTPSessionProxyType No proxy
Session Proxy
Session Proxy Bypass
Connect Retries 5
Connect Timeout (ms) 60,000
HTTP Version HTTP 1.1
Max Connects Per 1.0 Servers INFINITE
Max Connects Per Servers INFINITE
Max HTTP automatic redirects 10
Max HTTP status continue 10
Send Timeout (ms) 30,000
IEProxy Auto Detect No
IEProxy Auto Config
IEProxy
IEProxy Bypass
Default Proxy Config Access Type No proxy
Default Config Proxy
Default Config Proxy Bypass
Sharing and Discovery
Network Discovery Enabled
File and Printer Sharing Enabled
File and printer sharing service Enabled
Simple File Sharing Enabled
Administrative Shares Enabled
Network access: Sharing and security model for local accounts Classic – local users authenticate as themselves
Adapters List
Enabled
NVIDIA nForce 10/100/1000 Mbps Ethernet
Connection Name Local Area Connection
NetBIOS over TCPIP Yes
DHCP enabled Yes
MAC Address 00-1A-92-75-BF-2D
IP Address 192.168.0.21
Subnet mask 255.255.255.0
Gateway server 192.168.0.1
DHCP 192.168.0.1
DNS Server 198.142.0.51
211.29.132.12
198.142.235.14
TeamViewer VPN Adapter
Connection Name Local Area Connection 2
DHCP enabled Yes
MAC Address 00-FF-24-3B-21-6B
Network Shares
Users C:Users
Current TCP Connections
C:Program Files (x86)Aurorafirefox.exe (4048)
Local 127.0.0.1:49245 ESTABLISHED Remote 127.0.0.1:49244 (Querying… )
Local 127.0.0.1:49244 ESTABLISHED Remote 127.0.0.1:49245 (Querying… )
C:Program Files (x86)SkypePhoneSkype.exe (2428)
Local 0.0.0.0:443 (HTTPS) LISTEN
Local 192.168.0.21:49215 ESTABLISHED Remote 134.170.0.215:443 (Querying… ) (HTTPS)
Local 0.0.0.0:29488 LISTEN
Local 192.168.0.21:49181 ESTABLISHED Remote 65.54.184.36:443 (Querying… ) (HTTPS)
Local 192.168.0.21:49169 ESTABLISHED Remote 91.190.218.59:12350 (Querying… )
Local 192.168.0.21:49165 ESTABLISHED Remote 111.221.77.142:40002 (Querying… )
Local 0.0.0.0:80 (HTTP) LISTEN
C:Program Files (x86)uTorrentuTorrent.exe (2464)
Local 192.168.0.21:49883 SYN-SENT Remote 50.12.69.242:48426 (Querying… )
Local 192.168.0.21:49884 LAST-ACK Remote 124.176.168.196:24874 (Querying… )
Local 192.168.0.21:49885 ESTABLISHED Remote 141.237.151.13:45696 (Querying… )
Local 192.168.0.21:49887 SYN-SENT Remote 14.202.33.111:64620 (Querying… )
Local 192.168.0.21:49890 ESTABLISHED Remote 123.243.118.199:28212 (Querying… )
Local 192.168.0.21:49892 ESTABLISHED Remote 27.33.253.190:41571 (Querying… )
Local 192.168.0.21:49893 SYN-SENT Remote 201.86.0.147:60935 (Querying… )
Local 192.168.0.21:49894 SYN-SENT Remote 98.196.80.76:32051 (Querying… )
Local 192.168.0.21:49895 SYN-SENT Remote 93.189.40.230:54000 (Querying… )
Local 192.168.0.21:49896 SYN-SENT Remote 75.19.117.131:11469 (Querying… )
Local 192.168.0.21:49897 SYN-SENT Remote 50.126.55.54:12170 (Querying… )
Local 192.168.0.21:49898 SYN-SENT Remote 23.30.24.33:42646 (Querying… )
Local 192.168.0.21:49805 LAST-ACK Remote 203.217.79.13:43611 (Querying… )
Local 192.168.0.21:49721 LAST-ACK Remote 197.237.196.163:27177 (Querying… )
Local 192.168.0.21:54000 ESTABLISHED Remote 41.135.144.51:53733 (Querying… )
Local 192.168.0.21:49441 ESTABLISHED Remote 5.68.179.131:26727 (Querying… )
Local 192.168.0.21:49428 ESTABLISHED Remote 60.240.144.95:50002 (Querying… )
Local 192.168.0.21:49405 ESTABLISHED Remote 106.69.159.13:24079 (Querying… )
Local 192.168.0.21:49359 ESTABLISHED Remote 184.4.108.121:13907 (Querying… )
Local 192.168.0.21:49345 ESTABLISHED Remote 184.4.108.121:13907 (Querying… )
Local 192.168.0.21:49412 ESTABLISHED Remote 87.58.123.141:42074 (Querying… )
Local 192.168.0.21:49852 SYN-SENT Remote 74.44.83.102:54276 (Querying… )
Local 192.168.0.21:49859 LAST-ACK Remote 189.156.226.56:6882 (Querying… )
Local 192.168.0.21:49875 SYN-SENT Remote 181.188.81.65:6346 (Querying… )
Local 0.0.0.0:54000 LISTEN
Local 192.168.0.21:49876 ESTABLISHED Remote 92.21.228.172:46248 (Querying… )
Local 192.168.0.21:49878 CLOSE-WAIT Remote 108.175.224.139:30763 (Querying… )
C:Program FilesHPHP Deskjet 3520 seriesBinHPNetworkCommunicator.exe (3200)
Local 192.168.0.21:49222 ESTABLISHED Remote 192.168.0.11:8080 (Querying… )
C:Program FilesHPHP Deskjet 3520 seriesBinHPNetworkCommunicatorCom.exe (3040)
Local 192.168.0.21:49158 ESTABLISHED Remote 192.168.0.11:8080 (Querying… )
lsass.exe (484)
Local 0.0.0.0:49154 LISTEN
services.exe (468)
Local 0.0.0.0:49156 LISTEN
svchost.exe (720)
Local 0.0.0.0:135 (DCE) LISTEN
svchost.exe (848)
Local 0.0.0.0:49153 LISTEN
svchost.exe (936)
Local 0.0.0.0:49155 LISTEN
System Process
Local 192.168.0.21:54000 TIME-WAIT Remote 58.167.89.254:51439 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 58.87.137.6:63339 (Querying… )
Local 192.168.0.21:49596 TIME-WAIT Remote 91.190.218.17:80 (Querying… ) (HTTP)
Local 192.168.0.21:54000 TIME-WAIT Remote 24.29.229.185:57826 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 93.137.194.28:59771 (Querying… )
Local 192.168.0.21:49728 TIME-WAIT Remote 63.245.215.56:80 (Querying… ) (HTTP)
Local 192.168.0.21:49729 TIME-WAIT Remote 63.245.215.46:80 (Querying… ) (HTTP)
Local 192.168.0.21:54000 TIME-WAIT Remote 5.9.58.173:54855 (Querying… )
Local 192.168.0.21:49811 TIME-WAIT Remote 63.245.215.46:80 (Querying… ) (HTTP)
Local 192.168.0.21:54000 TIME-WAIT Remote 172.56.15.70:20727 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 159.0.100.90:54171 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 159.0.100.90:53904 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 159.0.100.90:53652 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 109.247.193.236:39275 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 109.247.140.42:64829 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 108.53.4.214:49639 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 108.53.4.214:49557 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 93.137.194.28:59988 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 93.137.194.28:59497 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 93.137.194.28:59257 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 76.94.222.188:55675 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 74.195.40.68:53671 (Querying… )
Local 192.168.0.21:54000 TIME-WAIT Remote 62.14.186.180:59855 (Querying… )
Local 192.168.0.21:49832 TIME-WAIT Remote 63.245.215.46:80 (Querying… ) (HTTP)
System Process
Local 192.168.0.21:139 (NetBIOS session service) LISTEN
Local 0.0.0.0:445 (Windows shares) LISTEN
Local 0.0.0.0:2869 LISTEN
Local 0.0.0.0:5357 LISTEN
Local 0.0.0.0:10243 LISTEN
TeamViewer_Service.exe (1516)
Local 127.0.0.1:5939 LISTEN
wininit.exe (416)
Local 0.0.0.0:49152 LISTEN
wmpnetwk.exe (3096)
Local 0.0.0.0:554 LISTEN
Generated with Speccy v1.26.698

Reply | Quote

You have a USB plug-in card that is USB 1.1 (“old school”). Most external drives now are USB 3.0, which is much faster than USB 2. I would replace the old card with one that has USB 3.0, particularly if I intended to use a USB 3.0 external drive. I’m not sure what your existing external drives are, maybe they are only USB 2.0. When I plug a USB 3.0 external into a USB 2 port (I have a mix of USB 2 and 3 ports), I get the “you could do better” message.

Since you are having a rather persistent issue (tried lots of things, long thread already), I would recommend that you check your RAM with Memtest86 or Memtest86+, which are free downloads that you can find using Google. They are much more thorough than the Windows Memory Diagnostic Test that is built into Windows 7 (it reported that my RAM was okay when it wasn’t). You burn a downloaded .iso file onto a DVD and boot from that. Bad memory can result in all kinds of odd symptoms and just about any error message under the sun.

Reply | Quote

My apologies… I should have made it clear to attach the Speccy report, not just paste it in. Anyway, it was useful. You may wish to edit your previous post (line 25 of the Speccy report) to remove the Win 7 serial no. It should be OK, it’s a just in case.

In my experience the exclamation mark against PS/2 devices in Device Manager (with ‘hidden’ devices showing) is quite normal. My PC shows the same when I don’t have a PS/2 mouse attached. The only reason I asked you to use PS/2 devices if possible is to clean the USB ENUM keys in the registry as much as possible without having to use the registry editor directly.

1. Using Device Manager, un-install the Unknown Device then close Device Manager.

2. Using USBDeview (running as administrator), un-install the top 4 HID devices (which I’m surprised DriveCleanup didn’t do). (The Unknown Device should have disappeared but, if not, un-install it.)
37030-remove
Click to enlarge
Close USBDeview.

3. Optional – Enter eventvwr.msc in Start > Search programs and files then, when it appears in the Search results, right-click and choose Run as administrator. (Why? Because you need to see clearly what’s happening when you reboot and start re-attaching USB devices.)
3a. Expand Windows Logs and click on System to select it.
3b. Click on Action in the menubar then select Clear log….
3c. Click on Clear (or Save and Clear – your choice).
3d. Close Event Viewer.

4. Shutdown completely.
5. Start PC again.
6. Check Device Manager/USBDeview for any Unknown device that’s re-installed.
7. If an unknown device is added, check System in Event Viewer for any details of the device, i.e. error messages. (I don’t actually use Event Viewer as I find errors don’t usually provided any useful results. Instead I use Nir Sofer’s MyEventViewer as this allows showing different logs in a single pane.)
8. Report back.

Reply | Quote

Hi guys, first time poster. I just have a few things to add.

First, you should be more careful when plugging/unplugging PS/2 devices. They weren’t designed to be hot-pluggable like USB devices, and if you’re unlucky, you could ruin your PS/2 mouse, keyboard, the port itself, or the motherboard as a whole. Only plug or unplug them with the computer’s power completely off (meaning sleep mode may not be good enough.)

Second, it’s common for a motherboard to have more USB ports available than what are physically available on the machine. To save on costs or provide for future expansion, available USB headers on the motherboard may not be plugged into anything externally, or there may be a soldered header with no socket to plug into, or the microchip controller may simply support more ports and not have had such support programmatically disabled. So don’t worry about the mismatch between 10 ports showing in Windows and 8 ports being physically available.

Third, malware infections cause all kinds of problems, including driver issues. As an IT professional, I spend around half of every work day cleaning up after that stuff. I’ve run across some particular Potentially Unwanted Programs (PUPs) that do exactly that on purpose, with the intention of trying to get you to pay for their driver update or maintenance program (which you shouldn’t do, of course. They’re the cause of the problem in the first place. Never give in to extortion, it only encourages the bad actors to do it more.)

While looking through your speccy log, I saw two running processes that I thought were suspicious:
C:Usersr3b3lw0lfAppDataLocalSkillbrainslight shot5.1.0.15Lightshot.exe
C:Program Files (x86)RocketDockRocketDock.exe

The first one is running from your user profile, which is a giant red flag to me, though I’m not familiar with it enough to know up front if it’s OK. The second one I think I’ve seen before on other infected computers, but I’m not sure about it, either. If you don’t know what either of those are, try uninstalling them from Control Panel and seriously consider some deeper anti-malware scans. It looked to me like you didn’t have any anti-virus software running other than Windows Defender, so a stealthy rootkit infection may have a higher probability of being an issue here than usual.

After deciding what to do about those processes, and taking care of that Unknown Device that Rick covered, if you’re still having issues with your USB devices, there’s more that can be done.

Reply | Quote

Hi JonCS, welcome to the forum.

You’re quite right about PS/2 devices and I should have made it clear to the OP that his PC should be completely shutdown before connecting/disconnecting. Sometimes it’s just too easy to forget these basics when replying to a post.

The OP is using Lightshot for some of his screenshots. Rocketdock‘s just an application launcher and quite well-known not to be malware (although ‘stable’ is a different matter, IMHO :)).

I, too, wondered about malware… but only ‘cos OP is using uTorrent (and, like you, I couldn’t see any evidence of any anti-malware programs except for Windows Defender). I know the two don’t go hand-in-hand but it’s always a warning sign. I thought I would assist the OP with initial hardware stuff before looking for other causes (e.g. twolery’s suggestion in post #28 to check RAM. It’s a valid point but may throw OP through too many hoops at the moment.)

Thanks for the info about the mismatch between 10 ports showing in Windows and 8 ports being physically available. I wasn’t aware of this (given I almost always work on ‘standard’ business class PC’s rather than on third-party USB peripherals) but the bit about “the microchip controller may simply support more ports and not have had such support programmatically disabled” makes complete sense. At first I thought that this might have meant my assertion in post #18 about having a problem in the Windows registry could be wrong but a later post by the OP (post #27) shows that there is indeed a problem with the OP’s registry. Hopefully my advice in post #29 will sort this.

I’m trying to work with the OP to get a stable ‘standard’ USB configuration before looking at his USB mass storage devices (see post #10 where a BIOS checksum error occurred whilst booting with his 2 identical 2 Tb Seagate Expansion Desk 2 external drives connected).

The OP has also had a previous poor experience of being asked to un-install the root hubs and controllers from within Device Manager (post #5) and it made things worse… so we’re taking it one step at a time.

PS – I note that OP’s Speccy report shows a stopped Logitech Bluetooth service, which suggests that OP may have been using a Logitech wireless keyboard or mouse connected to a USB wireless controller at some point, hence my attempt to create a ‘clean’ and current USB device enumeration in the registry.

Reply | Quote

Rick, thanks for the info and links on Lightshot and Rocketdock. I’ll remember them for the next time I see them on someone’s computer.

I just wanted to clarify that I didn’t mean to come off as overly critical. I was just trying to contribute what I thought might be some missing info. I agree with your approach and I think you’re doing a pretty good job so far. I’m inclined to stay mostly out of the way as I’m pretty busy with other things and I think that too many cooks can spoil the pot. So, keep up the good work.

In my opinion, that unknown device remains the next main thing that should be addressed. If it has anything to do with USB controllers or hubs, it could very well be the reason the external harddrive isn’t able to run at full speed. And even if it isn’t the cause, it’s still probably something that should be taken care of, anyway.

One other thing just occurred to me: the cable being used to connect that one particular drive that was mentioned might be damaged or worn, and the loss of speed right when the drivers were messed with might be just a coincidence. Has a different cable been considered, assuming it’s detachable? This seems like a lower probability cause, but I thought I’d throw it in if the other stuff doesn’t pan out.

Down the road, I was also considering suggesting to maybe uninstall the HP printer stuff temporarily as their drivers are known to be a bit temperamental, especially if a bit of registry corruption has occurred. The Logitech stuff may also be relevant, but seems even less likely. Or maybe you could try a “safe” registry cleaner like the one that comes with CCleaner, which I believe I saw the OP already had installed. Oh, and it might be a good idea to use System Restore judiciously between steps to create new restore points, in case something makes things worse. You might even consider using System Restore to go back to a time before the problem showed up, but that can sometimes cause new problems. I would only consider it as a second-to-last resort before doing a clean re-install of Windows altogether.

But I’m not suggesting doing any of those yet – one thing at a time! I only mention them now because I don’t know when I’ll get back to reading this forum. Good luck!

– Jon

Reply | Quote

Hi Jon,

I didn’t pick up anything ‘overly critical’ at all… you made very valid and helpful points, especially the one about the potential of a damaged USB cable. I’ve experienced this same issue myself so have kept it at the back of my mind for when OP begins adding USB devices back to his (hopefully now ‘clean’ USB setup). Any more advice/insights are welcome ‘cos my experience is primarily with ‘standard’ business-class PC’s and mainstream apps. Suggest away! 🙂

PS – I considered System Restore but couldn’t think of a way to determine accurately when was a good point to restore to.

There’s so many potential factors that I’m trying to take diagnosis at snail’s pace… even though this may try OP’s patience (hopefully not :), but OP’s location appears to be Victoria, Australia… i.e. 10 hours offset to my own time zone [Bristol, UK], so I’m usually asleep when OP replies and vice versa).

Rick

Reply | Quote

Ok, one… I use utorrent, but I don’t use public and I browse safely.
I run rkill and mbam once a week, with the occasional SAS run through aswell.

I use lightshot for screenshots… looking for one that takes the pic but then uploads with a image extension LOL.
Rocketdock is just another taskbar… yeah not always stable… cos it not stay on top as it should LOL

Okay. I did all that was said… I didn’t notice anything in system regarding usb errors or devices etc.
BUT, in application I found these….

Fault bucket , type 0
Event Name: PnPRequestAdditionalSoftware
Response: Not available
Cab Id: 0

Problem signature:
P1: x64
P2: HIDVID_046D&PID_C31C&REV_6400&MI_01&Col02
P3: 6.1.1.0
P4: 0409
P5: input.inf
P6: *
P7:
P8:
P9:
P10:

Attached files:

These files may be available here:
C:Usersr3b3lw0lfAppDataLocalMicrosoftWindowsWERReportQueueNonCritical_x64_fcd3d224ca8bd461c4dca7e648fef6e125073de_0cb8d567

Analysis symbol:
Rechecking for solution: 0
Report Id: 0b895830-dcd5-11e3-95c9-001a9275bf2d
Report Status: 4

Fault bucket , type 0
Event Name: PnPDeviceProblemCode
Response: Not available
Cab Id: 0

Problem signature:
P1: x64
P2: USBUNKNOWN
P3: {36fc9e60-c465-11cf-8056-444553540000}
P4: 0000002B
P5: unknown
P6: unknown
P7: unknown
P8:
P9:
P10:

Attached files:

These files may be available here:
C:Usersr3b3lw0lfAppDataLocalMicrosoftWindowsWERReportQueueNonCritical_x64_8dd2a6bea57836935d86a299b4735d5c6f632592_0cb8d7b8

Analysis symbol:
Rechecking for solution: 0
Report Id: 0b895831-dcd5-11e3-95c9-001a9275bf2d
Report Status: 4

Fault bucket , type 0
Event Name: PnPRequestAdditionalSoftware
Response: Not available
Cab Id: 0

Problem signature:
P1: x64
P2: USBVID_046D&PID_C31C&REV_6400&MI_01
P3: 6.1.1.0
P4: 0409
P5: input.inf
P6: *
P7:
P8:
P9:
P10:

Attached files:

These files may be available here:
C:Usersr3b3lw0lfAppDataLocalMicrosoftWindowsWERReportQueueNonCritical_x64_1d35b80a5154488b340fd09f4eb99e773d3392_0cb97232

Analysis symbol:
Rechecking for solution: 0
Report Id: 2314d741-dcd5-11e3-95c9-001a9275bf2d
Report Status: 4

Fault bucket , type 0
Event Name: PnPRequestAdditionalSoftware
Response: Not available
Cab Id: 0

Problem signature:
P1: x64
P2: USBVID_046D&PID_C31C&REV_6400&MI_00
P3: 6.1.1.0
P4: 0409
P5: input.inf
P6: *
P7:
P8:
P9:
P10:

Attached files:

These files may be available here:
C:Usersr3b3lw0lfAppDataLocalMicrosoftWindowsWERReportQueueNonCritical_x64_64be87d87c29344c4db448d9287c67e975152d_0cb96e4c

Analysis symbol:
Rechecking for solution: 0
Report Id: 2314d740-dcd5-11e3-95c9-001a9275bf2d
Report Status: 4

I notice them in “application log” (using that “MyEventViewer”)

37035-QHUZIb74
Thats what I see when I restart.

37036-ijgQoKcW

USBDeview… with again that unknown device… but the highlighted, im thinking is to do with keyboard maybe?
Why it installs 2 keyboards… I have no idea.

PS – I note that OP’s Speccy report shows a stopped Logitech Bluetooth service, which suggests that OP may have been using a Logitech wireless keyboard or mouse connected to a USB wireless controller at some point, hence my attempt to create a ‘clean’ and current USB device enumeration in the registry.

Am not sure about bluetooth, or how to activate it.. I have a MK120 logitech combo… keyboard and mouse. Atm, the mouse isn’t plugged in, and the keyboard is plugged in. NORMALLY, I have them both in that “fly lead” attached to mobo.

Reply | Quote

A search on the PCI database for Vendor ID 046D shows that it is indeed your Logitech keyboard that is reporting as Unknown Device. Do you have the driver installation disk? If so, try installing the driver again. I’m not at all conversant with Logitech stuff. Also, you may wish to read the Logitech article about the possibility of interference with USB 3 kit.

Anyway, now you know that the unknown device refers to the keyboard, it’s time to move on to your drives. Please do the following:
1. Plug one of your Seagate Expansion Desk 2 external drives into a USB port on the rear.
2. Check MyEventViewer for any problems and USBDeview that it’s recognised at the correct USB speed (is it USB 3.0 or 3.0?).
3. If all’s OK, plug the second Seagate Expansion Desk 2 external drive into a USB port on the rear (is it identical to the first one, i.e. same USB speed?).
4. Once again, check MyEventViewer for any problems and USBDeview that it’s recognised at the correct USB speed.
5. Report back and also let us know what other external drives you have, whether they are powered or un-powered and what USB speed they are.

Reply | Quote

Windows has stopped this device because it has reported problems. (Code 43)

Thats the error msg to do with the unknown in device manager.

My PC has no ability for USB3… even if a drive is attached is USB3.
The MK120 keyboard and mouse combo is 2.0.
Why it installed 2 keyboards and such, is stumping me LOL. Why it says unknown device? also stumpin me… cos im using it right now LOL

I just tried plugging something in the front top usb slot (which was working), it is now completely dead, nothing happening. Not reading it at all.

3 out of 4 of those quests have the same vid and pid, been identified… why thats happens, no clue. I don’t think I gotta disc with the combo. I have looked in my cds and nothing there (but have the paperwork, but nothing bout a disc), and the only thing I can find, is set point and flow scroll in support from logitech,

The other is different…

Problem signature:
P1: x64
P2: USBUNKNOWN
P3: {36fc9e60-c465-11cf-8056-444553540000}

its not known, just “host controller” as manufacturer (as USBDeview shows)

Maybe it IS the front facia that is getting the unknown? Maybe its completely failed now?

The seagate plugged in, shows 2.1 (it is a usb3 external hdd), but its always done that.

This could be interesting….
37041-8P6exrvH
Just come back to PC and got “installing drivers” for the drive I had plugged into the TOP front port (took a few hours).
So just get that and told the drive is unplugged, and it is STILL plugged in.
Mind boggles LOL

Reply | Quote

Windows has stopped this device because it has reported problems. (Code 43)

Thats the error msg to do with the unknown in device manager.

1. Please confirm that this error occurs when the Logitech keyboard is plugged in and which USB port it’s plugged into. (From post #26, it should be plugged into one of the lower ports at the back of your PC.
2. What happens when you follow the MS diagnostic advice for Code 43 errors? Does it resolve the error? If not, what happens when you run the Microsoft Hardware Fixit?

My PC has no ability for USB3… even if a drive is attached is USB3.

I know… but USBDeview will show USB 3 devices as USB 2.10, indicating backwards compatibility.

Problem signature:
P1: x64
P2: USBUNKNOWN
P3: {36fc9e60-c465-11cf-8056-444553540000}

3. {36fc9e60-c465-11cf-8056-444553540000} is the GUID for USB host controllers and hubs. There’s a post that claims to fix this error (see post #24) but it involves manually editing the registry. Are you OK about working in the registry? (Don’t do anything at the moment.)

4. Another possibility is a corrupt input.inf file (C:Windowsinput.inf) but the check for this (sfc /scannow from an elevated command prompt) takes quite some time.

I suggest doing just 1 and 2 above for the moment then report back.

Reply | Quote

1. Please confirm that this error occurs when the Logitech keyboard is plugged in and which USB port it’s plugged into. (From post #26, it should be plugged into one of the lower ports at the back of your PC.

To do that, I removed everything from PC again to do with usb and went back to using ps/2 mouse (but again to type, I put keyboard back in after seeing what happened when boot up- no cmos checksum error and no keyboard installed)

Ran driveclean (from desktop, I still have a copy in system32 that just can’t be seen, but IS there, cos I need to overwrite it LOL, when I drag a copy in)
37047-T5K1iy8V
Ran it again.
37048-REoPrwNu
Didn’t remove anything- all gone

Went to usbdeview and uninstalled everything there
37049-pUFjsTlg
All empty.

I then looked in device manager.
37050-IvQudF3b
ps/2 mouse, no keyboard and enhanced and openchd… no hubs etc, as you can see.

I then shut down windows. waited a few minutes and then turned PC back on.
37051-8WBhhLNT
Straight away the problem came up.

I then put in keyboard and the following showed up
(the unknown device was already there, as the screenshot before, but while I was looking in device manager, thought I would screenshot what it exactly says, and show what was installed etc when I put keyboard in.)
37052-upcLlb7c

Then followed the prompt and restarted.

2. What happens when you follow the MS diagnostic advice for Code 43 errors? Does it resolve the error? If not, what happens when you run the Microsoft Hardware Fixit?

Ran/ looked at both of these…… and also installed silverlight (was the only thing that came up when “allow windows to update drivers” in this next screenshot…)
37046-X9K4C090
This is what I got…
37053-xSE3qV8h

3. {36fc9e60-c465-11cf-8056-444553540000} is the GUID for USB host controllers and hubs. There’s a post that claims to fix this error (see post #24) but it involves manually editing the registry. Are you OK about working in the registry? (Don’t do anything at the moment.)

I am comfortable editing, if it shows me where and what to change to.
I didn’t change/ edit anything, but I did have a look…
37054-Pqn8Gdqi
0004 is that unknown… but as you can see, there are no uppers/lowers… have been told a few times about it… but unless I am looking totally the wrong place… I have never see lowers/uppers, as you can see. Because you said “don’t do anything at the moment” I didn’t delete that file and such yet

I had a look for the file mpfilt I am meant to delete… (wasn’t going to do it) anyways, I not have it…
37055-Nta4IVj

I know… but USBDeview will show USB 3 devices as USB 2.10, indicating backwards compatibility.

Well that explains that mystery, cheers 🙂

Went and looked in “hidden devices” on device managers…

faded grey HID Keyboard device
faded grey HID Keyboard device
faded grey HID Keyboard device
solid grey HID Keyboard device
faded grey HID Keyboard device
Yellow triangle ! mark for ps/2 keyboard

wtf? I woulda posted image, but been told I posted two many (and didn’t want to double post)

Reply | Quote

You’ve done well. You cleaned up with DriveCleanup and USBDeview and shown that the error appears with just a PS/2 mouse attached, no keyboard. This means the problem is with one of the onboard USB devices. You’ve already mentioned that the lower USB port on the front panel isn’t working so it’s most likely this that is the problem. However, to doublecheck, please do the following:

1. Make a note of the layout of your mainboard, particularly the pin headers I’ve marked as A, B and C in red.
37057-mainboard
Click to enlarge
2. Using DriveCleanup and USBDeview, do the same as before to cleanup the USB info in the registry.
3. Shutdown the PC and remove the power cord.
4. Open the PC case and trace the cable from the 2 USB ports on the front to where the cable plugs into the mainboard, most likely either B or C.
5. Temporarily detach the cable’s connector from the pin header.
6. Check whether anything is plugged into pin header A. If so, make sure the connection is secure.
7. Replace the lid and power cord and re-start the PC with only the PS/2 mouse connected.
8. Wait a minute or two for devices to recognised and check in Device Manager whether the unknown device error appears.

If it doesn’t appear then this confirms where the problem is. You can, at this point, carry out step 3 again and re-attach the cable to the USB pin header to check whether it was just a poor connection. Either way, re-connect the USB keyboard to one of the lower ports on the back of the PC and let us know how you’ve got on.

In the meantime, I’m doing some testing in the registry about what happens if you were to remove the {36fc9e60-c465-11cf-8056-444553540000} GUID for USB host controllers and hubs completely. (Don’t do anything in the registry yet.) I’ve checked my own registry settings and where it shows Unknown Device in your screenshot, in my registry it shows Generic USB Hub.

Reply | Quote

Alright… first off.
“B” was where I had my “on the fly” plugged in.
“A” I can’t see anything there at all, cos it looks to be “all enclosed box”

Now… I accidentally pulled out the “C” and the little bits on top of “C” so had no power button etc to turn on. LOL Got that all fixed up.
Alas, when booted up… same thing “Unknown device” same location.
I plugged in drive next to keyboard (bottom section of mobo usb) and both got picked up by open hcd controller.

When I have something plugged into…. the slots on mobo USB
USB USB
USB USB NET
^^

That one, it gets the mxn-mx screen, but goes no further. I unplug from there… and boots straight away (tho the FRONT usb is definitely [problematic], cos I got “no keyboard” error)

Reply | Quote

Just so I understand, are you saying that when you plug any USB device into the lower right-hand rear port (marked below) that the PC won’t start and just displays the initial mainboard logo screen? Is that correct?
37061-back-panel
Click to enlarge

Is there anything plugged into the pin headers marked as D? If so, what?
37060-mainboard
Click to enlarge

Please do the following:
1. Download and unzip USB Device Tree Viewer V2.3.6 then run the x64-bit version.
2. Select My Computer in the left-hand pane.
3. Please upload a screenshot:
Example
37062-usb-tree
Click to enlarge
4. Please save a full report (CTRL+S) and attach it (not copy/paste) to the post.

Reply | Quote

Upon closer inspection… A… the last pin is “free” the first two pins have a “blue” connection over it… but think of “slave/master” etc, you know how you took it out and moved it etc? Its like that, doesn’t appear to be attached to anything, just covering the first two pins.

“D” is completely free of anything.

Yup. Number 7 (on first diagram) something in there, seems pc don’t get far. I remove usb, and goes straight away.

37063-UsbTreeView_report

I hope I have attached right 😛

Alright… I have just plugged a drive into number 7.
Boom, works perfect…
37064-GblrjdLf

I saved the report for “selected item” (of the mass storage” I just attached.)
37065-USB-Mass-Storage-Device

Reply | Quote

The reason I asked if there was anything attached to the USB pin header marked D is because the mainboard manual specifically advises that attaching a 1394 (Firewire) cable to any of the USB pin headers will damage the mainboard and I spotted a 1394 OHCI Compliant Host Controller (Legacy) entry in the Speccy report you posted (#27).

Upon closer inspection… A… the last pin is “free” the first two pins have a “blue” connection over it… but think of “slave/master” etc, you know how you took it out and moved it etc? Its like that, doesn’t appear to be attached to anything, just covering the first two pins.

I took a better look at the manual and see that “A” is for USB keyboard wakeup, e.g. to bring the PC out of sleep by pressing the spacebar, if configured. The blue connection is called a jumper. If it’s across the first 2 pins then it means USB wakeup isn’t configured.

”D” is completely free of anything.

Good. Please confirm whether “B” or “C” are connected to anything.

Yup. Number 7 (on first diagram) something in there, seems pc don’t get far. I remove usb, and goes straight away.
Alright… I have just plugged a drive into number 7.
Boom, works perfect…

If you click to expand the manual diagram of the rear panel you’ll see that 7 refers to both upper and lower USB ports on the right at the back. I put a red oblong round the lower port to indicate I was referring only to the lower port. Is this the one you are referring to as the one which now has a drive attached (i.e. shown as port 4 in the USB Device Tree Viewer screenshot you posted)?

We need to determine which exactly is port 8, i.e. showing in the USB Device Tree Viewer screenshot as an Unknown Device. (I don’t know why the keyboard – which previously has been shown as a USB 2.0 device – is now showing as attached to a port in the OpenHCD Host Controller list, i.e. USB 1.1.)

Reply | Quote

There is a firewire card on the pc…. GFX card, firewire card (already IN pc when I got it), soundcard (and then the not attached on the fly usb)
But nothing is in D.
I don’t have, nor do I want usb to wake pc up, I don’t even have pc set to sleep, or hibernate, I just have blank screensaver.
When I said number 7… I meant the red one you marked.
Usually is the one next to net I use for the keyboard, this time it went to top one (directly above), and then put the external in the one next to net.
It showed as a 1.1 speed. and USBDeview didn’t show it as what it should be…
The TOP is how USBDeview was showing it, the one below, is what it was showing before…
37071-6FKLskag

So I ejected it, cleared all my history and such again, shut down. put keyboard next to net, and the drive next to it. pc wouldn’t start up. I removed it, and it started it.
I didn’t attach the drive again… but used the same able, and put it on the tv external and yeah, showed up on enhanced (as it should), and ran at normal speed (as it should), which is what the other external should do when plugged in.
The ONLY difference I can think of… is one is usb powered, and the other is dc powered. But that doesn’t explain the unidentified that I get with no usb attached at all LOL

I would love to this this device thats not working as it should LOL. Thanx for the patience, and coming back to the thread.

“B” and “C” are completely free.

(I don’t know why the keyboard – which previously has been shown as a USB 2.0 device – is now showing as attached to a port in the OpenHCD Host Controller list, i.e. USB 1.1.)

keyboard always been showing 1.1 its the mouse that shows 2.0 (tho they are a set, mouse gets logitech brand, keyboard doesn’t LOL)
37072-X390SH9

from usb device tree manage about the unknown…

Problem Code : 43 (CM_PROB_FAILED_POST_START)

Top link in google…
http://msdn.microsoft.com/en-us/library/windows/hardware/ff538971%28v=vs.85%29.aspx

CM_PROB_FAILED_POST_START

A driver has reported a device failure.
Error Code

43
Display Message (Windows XP and later versions of Windows)

“Windows has stopped this device because it has reported problems. (Code 43)”
Recommended Resolution (Windows XP and later versions of Windows)

Uninstall and reinstall the device.

One of the drivers controlling the device told the operating system the device failed in some manner in response to IRP_MN_QUERY_PNP_DEVICE_STATE.

Reply | Quote

When I said number 7… I meant the red one you marked.
Usually is the one next to net I use for the keyboard, this time it went to top one (directly above), and then put the external in the one next to net…

put keyboard next to net, and the drive next to it.

My fault, I’m getting confused. To prevent any further confusion, please refer to the rear USB ports as either a, b, c or d (referring to the revised graphic I’ve attached).

If you’re still getting the Unknown Device with only the USB keyboard attached then it must refer to a USB port itself, not a device attached to a port. As you have the front USB ports temporarily disconnected from the mainboard then it must be one of the 4 rear ports. USBTreeView shows the error on Port 8 of the Standard OpenHCD USB Host Controller (i.e. USB 1.1), not port 8 of the Standard Enhanced PCI to USB Host Controller (i.e. USB 2.0). Does this make sense?

I think the best thing to do is to make sure that the only USB device attached to your PC is your keyboard (a USB 1.1 device) then, with USBTreeView running, move the keyboard to each of the 4 rear ports in turn until it stops being recognised as a USB Composite Device – HID, HID device. (Make sure AutoRefresh is turned on in USBTreeView’s Options menu.)

Which rear USB port (a, b, c or d) doesn’t recognise the USB keyboard as a USB Composite Device – HID, HID device?
37077-back-panel1
Click to enlarge

Reply | Quote

A
37080-Qqcif7rW

B
37081-M4IAWrDn

C
37082-8wxnZo7y

D
37083-YzNnOjKJ

I plugged in a-d and went 1 through 4… no dramas.

Error still there, so is not that any of these USB ports, and no other USB ports are there to be used

Since I do not use firewire at all. I will shut down and remove that firewire card (I never use it)
I will see what that does.

*thinking outloud*
Im getting unknown device with no usb at all attached, and then reboot, and unknown device appears.
On mobo diagram…
A: “jumper” covering the first to pins.
B: Completely free.
C: Completely free.
D: Completely free.

I will remove all history of USB again, and then use USBDeview to uninstall all… I even removed openhcd and enhanced from device manager- so everything well and truly gone… fresh start.
and then reboot with keyboard in a-d.
See what happens.

Alright, a-d let me boot. No dramas whatsoever. have removed the firewire aswell…
and this is interesting when pc started up. I think I have showed this before… not sure..
“device unplugged”
37084-72pYSKR

Reply | Quote

Hi r3b3lw0lf, there’s no need to remove the Firewire port… it’s not doing any harm.

When you ran the Microsoft Hardware Fixit (post #38) the Driver Software Installation error was Unknown Device – Failed. Now it’s Unidentified Device – Device unplugged after clearing out all the USB info and re-starting. I don’t understand what it’s not ‘seeing’ (enumerating).

I’m at a bit of a loss what to suggest next. About the only thing left to try is a System File Check to ensure the integrity of the built-in driver files. Unfortunately the System File Check can take quite some time.
1. Click on Start and enter cmd in the Search programs and files dialog.
2. When cmd.exe appears in the results list, right-click on the name and choose Run as administrator.
3. When the command prompt appears, type sfc /scannow and press the Return/Enter key. The System File Check will begin.
4. Report back the result.

Reply | Quote

Prob has been happening for a while now… how long it takes to do a scannow isn’t much at all… am at 50% no. Cheers

37089-FGTDfYG

Do we just put this down to “motherboard must be fooked” LOL.

Thanx for the patience.

Well since I don’t use firewire, or have any cables for it…. figured it be just easier to just get rid of it LOL

Reply | Quote

r3b3lw0lf

Ok this was a long thread and I may have forgotten or mixed up a couple of things.
Please correct me if i am wrong here:

1. You do NOT have a front panel USB socket.
2. When you plug something in a particular M/B USB port you computer does not boot.

If #2 is true I would examine the port with a flashlight for a misaligned contact or stray matter. Blowing out w/ canned air shouldn’t hurt either.

🍻

Just because you don't know where you are going doesn't mean any road will get you there.

Reply | Quote

1: I have completely removed the front fascia… it is pulled out of mobo (was connected on “C”), the on the fly lead was in “B” but now removed.
The ONLY USB active on pc, is mobo 7 and 8
2: When I had a USB powered drive in number “D” on mobo, pc wouldn’t boot up. I took it out, and it started fine.

When I plug any of the USB powered devices in, they will ONLY get picked up 1.1 (open hcd), they DO NOT go onto 2.0 (enhanced).
I am thinking maybe power supply not got enough power to run the USB 3 external drives that are powered by USB only.
Cos I plugged one of MY USB3 drives in “d”, it booted up fine, keyboard in a-d in all ports responds as it should.

PC operates fine when I use my drives (usb3 dc powered- they go normal speed) only goes 1.1 speed with friends drive attached (which are usb3 usb powered), where before, anything attached was 1.1.
So thats progress… something rick and I have done has fixed that (thank you)

Still got “device unplugged” or what the unknown/ unidentified device is, through it all though… Thats the stumper.

The following errors occurred with your submission

Your submission could not be processed because the token has expired.

Please reload the window.

Getting that when I tried to post twice LOL

Reply | Quote

I’ve thought of another test.

1. Download and burn Hiren’s BootCD to CD.
2. Boot PC from Hiren’s BootCD.
3. Select Mini Windows XP.
4. Check Device Manager (Start > Programs > Devices > Device Manager) to see if an Unknown Device shows. (You may need to run Start > Programs > Devices > Device Manager > Install All Hardware (HwPnP) and Start > Programs > Devices > Device Manager > Install USB Hardware first.
5. Confirm state of USB hubs/ports using SIW. (Double-click the HBCD Menu icon on the desktop then select Programs > System Information > SIW (Sys Info for Win). When SIW opens, select Devices in the left-hand pane then check the USB controllers list in the right-hand pane.
6. Report back.

Reply | Quote

I checked device manger, and unknown was there, tho the info shown was different, its saying no drivers and such installed (not error 43 like on win7)
37101-BSVtwszY
After doing all the usb hardware, hwpnp etc first, I checked SIW and well it showed fine?
that is, didn’t show anything unknown and such there in USB section…
37102-4k5H8koQ

But I had a look at both keyboards it has there… one has a error?
The top two that says “Human Interface Device” didn’t show a error, was underneath that did…
37103-wqtpxgVe

Also did usbdeview on winxp
37105-jZeEnd3y

Thats from winXP

Now back on win7….
I looked on siw…. it showed unknown in usb
37104-ClMDMYKi
and for keyboard… “status”.. “has started” and in “problem” is “0x000000 (0)”

Sorry if this confuses you, im a bit confused myself now…

Reply | Quote

Hi r3b3lw0lf,

The reason for using Mini Windows XP from Hiren’s Boot Disk is because, using a different OS, if there still appears to be one or more problems with USB then it confirms that the problem is hardware related and not due to the OS, i.e. corruption of Win 7’s drivers or registry. (The previous result of sfc /scannow showed no corruption of any system files.)

Both Device Manager and USBDeview show problems in Mini Windows XP with an Unknown Device. It’s a shame you don’t have a PS/2 keyboard to take the USB keyboard out of the tests but I think it shows that the problem is your mainboard. You’ve updated the BIOS so it’s very unlikely to be BIOS corruption. Sorry but everything points to a hardware issue involving one of the USB ports on the back of your mainboard. Have you followed wavy’s advice (post #49) about checking these ports with a flashlight? Other than this, I can’t think of anything else that I can do to help.

PS – SIW shows the USB keyboard as having a problem in Mini Windows XP but I think this is incorrect. I think SIW realises that ‘wake-up from keyboard’ is available but is not enabled on the mainboard (i.e. pin header A labelled PS2_USB_PWR).

Reply | Quote

@jwitalka Prices are from scorptec.com I am from australia, and wasn’t look to build myself… if I did, I could get a gfx card.
But the deal was it had to be from australia, and well scorptec is half an hr away (one of the stores anyways).
After conversion… not sure how much of a different there would be anyway… shocked about the diff in cpu tho LOL

@rick Yeah, thats my thinking, told him I getting new machine and he still insisting I put vista on this machine… “it will fix it” LOL
Thanx for all your help matey.

Reply | Quote

if there was something in the physical slot… it wouldn’t allow me to put something in and it recognize it, cos something is there.

Jot it down to a dead mobo, and get a new build (updated one) me thinks LOL

Thanx for the time and patience.

Someone is telling me, it is cause mobo is designed for vista, so installing vista should fix everything up. Knowing the history, how pc was working fine for months with win7 sp1 ultimate 64bit, what you think? will it fix?

Am still going for new build… under 650 if I can LOL

++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

Thought I hit enter on that before I left this morning. Gyuess not…
Anyways… just to update… in bout a week and a bit time, this PC is going to the graveyard LOL

CPU: FD4300WMHKBOX $129.00
Description: AMD FX-4300 Black Edition, 3.80GHz, 4MB Cache, Quad Core, 95watt
Mobo: ASROCK – 970-EXTREME3-R2 $113.00
Description: ASRock 970-EXTREME3 R2.0 MB, AMD 970 + AMD SB950, 4x DDR3, 2x PCI-E 3.0, 5x SATA III, 4x USB 3.0, GBLAN, CrossFireX, ATX
RAM: G.Skill – F3-12800CL9D-8GBXL $105
Description: G.Skill 8GB (2x4GB), PC3-12800 (1600MHz) DDR3, Ripjaws X, 9-9-9-24-2N, 1.5V, Dual/ Quad Channel Kit
HDD: Seagate – ST500DM002 $63
Description: Seagate 500GB Barracuda, SATA III, 7200RPM, 16MB, NCQ
Case: Antec – GX500B-W $69
Description: Antec GX500B-W Dominator ATX Case. Window, NO PSU, Supports 15″ Extra Long VGA Card, 2x Fan Controls,7 Expansion Slot, USB 3.0 x 2, 1x 120mm Rear Fan
PSU: Zalman – ZM-500LX $55
Description: Zalman 500W ZM-500LX Power Supply, 120mm Fan, 2x PCI-E, 6x SATA, 4x Molex, 1x Floppy
CPU Cooling Zalman – ZM-CNPS90F $29
Description: Zalman ZM-CNPS90F Ultra Quiet CPU Cooler

Had to get a drive, but don’t need one….

Total is 678.02 (no freight and not installing software)….
gonna put this gfx card in it… the HD 5450 cos that mobo has no gfx at all… not even vga… but im fine with it… sata III quicker than anything ive experienced LOL.
Anyways, when that gets to me… will take the kingston hyperx out of this, put it up on ebay, do same with psu etc… stuff that I can’t use on new one, and yeah.
Thanx much for the help,.
What ya think of the new build?

Reply | Quote

Someone is telling me, it is cause mobo is designed for vista, so installing vista should fix everything up. Knowing the history, how pc was working fine for months with win7 sp1 ultimate 64bit, what you think? will it fix?

If everything was working fine with Windows 7 SP1 Ultimate x64 beforehand then it shows that the mainboard’s compatible, especially as it appears to be just one USB port that’s faulty. Changing to Vista won’t make a difference if you have a hardware fault.

What ya think of the new build?

Sorry but no idea. I stopped building PC’s years ago and I’m not familiar with the current market for components.

Reply | Quote

Don’t know where you got your prices but you can do much better at Microcenter – http://www.microcenter.com
Example:

AMD FX-4300 Black Edition 3.8 Mhz your price $129 Microcenter – $68 for a 3.9 Mhz
ASROCK – 970-EXTREME3-R2 your price $113 Microcenter $89

Jerry

Reply | Quote
