VBA in Word, how to copy cells from a table into another word document that has contentcontrol

Topic

New Reply

Hello everyone,

I have two word documents, one document used content control (Test_www.docx) and the other document (Test daily.docx) has a table.

I have to physically copy each cell from one table into the content controlled document. And it is a utter pain. I want to copy the table from Test daily.docx into the content control document Test_www.docx.

I want to copy the following items from Test daily.docx -> Test_www.docx

time ———————————————————> From To
Details of Events/Activities ———————————> Description.

I want this to continue until the end of the day at 23:59. If I have a very busy day this is very painful.

Time Details of Events/Activities
00:00 Some text
05:46 Some text

From To Activity Type Code Description
00:00 05:46 Choose activity type SUR (text) Some text
05:46 06:00 Choose activity type SUR (text) Some text
………………………………………………
23:59 23:59 Choose activity type SUR (text) Some text

Below are the two sample files I am working with:

41045-Test-www
41046-Test-daily

I made several attempts at this but I cannot wrap my head around VBA in word. Hopefully I have enough scraps of code for someone to help me out. I would be grateful for any working macro.

Attempt #1 have two documents open, copy from one file to another. I use, find then extend mode feature in word to select the right items.

Code:

Sub CopyFromSecondDoc()
‘
‘ CopyFromSecondDoc Macro
‘ from http://windowssecrets.com/forums/showthread//135517-Macro-to-copy-from-one-document-to-another
‘
Dim ThisDoc As Document
   Dim OtherDoc As Document

   If Documents.Count  2 Then
      MsgBox “Must only have two documents open!”
      Exit Sub
   End If

   Set ThisDoc = ActiveDocument


   If ThisDoc = Documents(1) Then
      Set OtherDoc = Documents(2)
   Else
      Set OtherDoc = Documents(1)
   End If

   OtherDoc.Activate
‘
‘
‘I’m trying to use the extendMode to select and copy all the times in Test daily.docx from 0000_2359
‘
‘
    Selection.Find.ClearFormatting
    With Selection.Find
        .Text = “Time”
        .Replacement.Text = “”
        .Forward = True
        .Wrap = wdFindContinue
        .Format = False
        .MatchCase = False
        .MatchWholeWord = False
        .MatchWildcards = False
        .MatchSoundsLike = False
        .MatchAllWordForms = False
    End With
    Selection.Find.Execute
    Selection.MoveDown Unit:=wdLine, Count:=1
    Selection.Extend
    Selection.Find.ClearFormatting
    With Selection.Find
        .Text = “23:59”
        .Replacement.Text = “”
        .Forward = True
        .Wrap = wdFindContinue
        .Format = False
        .MatchCase = False
        .MatchWholeWord = False
        .MatchWildcards = False
        .MatchSoundsLike = False
        .MatchAllWordForms = False
    End With
    Selection.Find.Execute
    Selection.Copy




‘ I’m trying to use the extendMode to select all the From rows in Test www.docx from 0000_2359
‘
   ThisDoc.Activate


    Selection.Find.ClearFormatting
    With Selection.Find
        .Text = “Project Operational Log”
        .Replacement.Text = “”
        .Forward = True
        .Wrap = wdFindContinue
        .Format = False
        .MatchCase = False
        .MatchWholeWord = False
        .MatchWildcards = False
        .MatchSoundsLike = False
        .MatchAllWordForms = False
    End With
    Selection.Find.Execute
    Selection.MoveDown Unit:=wdLine, Count:=1
    Selection.HomeKey Unit:=wdLine
    Selection.MoveLeft Unit:=wdCharacter, Count:=1
    Selection.HomeKey Unit:=wdLine
    Selection.MoveLeft Unit:=wdCharacter, Count:=1
    Selection.HomeKey Unit:=wdLine
    Selection.MoveLeft Unit:=wdCharacter, Count:=1
    Selection.HomeKey Unit:=wdLine
    Selection.MoveDown Unit:=wdLine, Count:=1
    Selection.Extend
    Selection.MoveDown Unit:=wdLine, Count:=39
    On Error Resume Next
    ‘Selection.PasteAndFormat (wdPasteDefault)
    ‘Selection.MoveDown Unit:=wdCell


    OtherDoc.Activate
    Selection.Copy

    ThisDoc.Activate
    Selection.PasteAndFormat (wdPasteDefault)

   Set ThisDoc = Nothing
   Set OtherDoc = Nothing


End Sub

Attempt #2, this may be easier to implement. I tied to declare and assign the ContentControl items values in Test http://www.docx to the appropriate values in Test daily.docx

Code:

Sub demo2()
Dim projectlog1cc1 As ContentControl
Dim projectlog2cc2 As ContentControl
Dim projectlog3cc3 As ContentControl
Dim projectlog4cc4 As ContentControl
Dim projectlog5cc5 As ContentControl
Dim projectlog6cc6 As ContentControl
Dim projectlog7cc7 As ContentControl
Dim projectlog8cc8 As ContentControl
Dim projectlog9cc9 As ContentControl
Dim projectlog10cc10 As ContentControl
Dim projectlog11cc11 As ContentControl
Dim projectlog12cc12 As ContentControl
Dim projectlog13cc13 As ContentControl
Dim projectlog14cc14 As ContentControl
Dim projectlog15cc15 As ContentControl
Dim projectlog16cc16 As ContentControl
Dim projectlog17cc17 As ContentControl
Dim projectlog18cc18 As ContentControl
Dim projectlog19cc19 As ContentControl
Dim projectlog20cc20 As ContentControl
Dim projectlog21cc21 As ContentControl
Dim projectlog22cc22 As ContentControl
Dim projectlog23cc23 As ContentControl
Dim projectlog24cc24 As ContentControl
Dim projectlog25cc25 As ContentControl
Dim projectlog26cc26 As ContentControl
Dim projectlog27cc27 As ContentControl
Dim projectlog28cc28 As ContentControl
Dim projectlog29cc29 As ContentControl
Dim projectlog30cc30 As ContentControl
Dim projectlog31cc31 As ContentControl
Dim projectlog32cc32 As ContentControl
Dim projectlog33cc33 As ContentControl
Dim projectlog34cc34 As ContentControl
Dim projectlog35cc35 As ContentControl
Dim projectlog36cc36 As ContentControl
Dim projectlog37cc37 As ContentControl
Dim projectlog38cc38 As ContentControl
Dim projectlog39cc39 As ContentControl
Dim projectlog40cc40 As ContentControl
‘Dim projectlog41cc41 As ContentControl




Set projectlog1cc1 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (1)”).Item(1)
Set projectlog2cc2 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (2)”).Item(1)
Set projectlog3cc3 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (3)”).Item(1)
Set projectlog4cc4 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (4)”).Item(1)
Set projectlog5cc5 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (5)”).Item(1)
Set projectlog6cc6 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (6)”).Item(1)
Set projectlog7cc7 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (7)”).Item(1)
Set projectlog8cc8 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (8)”).Item(1)
Set projectlog9cc9 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (9)”).Item(1)
Set projectlog10cc10 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (10)”).Item(1)
Set projectlog11cc11 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (11)”).Item(1)
Set projectlog12cc12 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (12)”).Item(1)
Set projectlog13cc13 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (13)”).Item(1)
Set projectlog14cc14 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (14)”).Item(1)
Set projectlog15cc15 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (15)”).Item(1)
Set projectlog16cc16 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (16)”).Item(1)
Set projectlog17cc17 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (17)”).Item(1)
Set projectlog18cc18 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (18)”).Item(1)
Set projectlog19cc19 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (19)”).Item(1)
Set projectlog20cc20 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (20)”).Item(1)
Set projectlog21cc21 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (21)”).Item(1)
Set projectlog22cc22 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (22)”).Item(1)
Set projectlog23cc23 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (23)”).Item(1)
Set projectlog24cc24 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (24)”).Item(1)
Set projectlog25cc25 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (25)”).Item(1)
Set projectlog26cc26 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (26)”).Item(1)
Set projectlog27cc27 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (27)”).Item(1)
Set projectlog28cc28 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (28)”).Item(1)
Set projectlog29cc29 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (29)”).Item(1)
Set projectlog30cc30 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (30)”).Item(1)
Set projectlog31cc31 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (31)”).Item(1)
Set projectlog32cc32 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (32)”).Item(1)
Set projectlog33cc33 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (33)”).Item(1)
Set projectlog34cc34 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (34)”).Item(1)
Set projectlog35cc35 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (35)”).Item(1)
Set projectlog36cc36 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (36)”).Item(1)
Set projectlog37cc37 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (37)”).Item(1)
Set projectlog38cc38 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (38)”).Item(1)
Set projectlog39cc39 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (39)”).Item(1)
Set projectlog40cc40 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (40)”).Item(1)
‘Set projectlog41cc41 = ActiveDocument.SelectContentControlsByTitle(“Project Operational Log – Description (41)”).Item(1)



‘Here i’m not sure how to assign values to the content control items from the table in Test daily.docx
projectlog1cc1.Range.Text = “teee”




End Sub

Any help would be graciously appreciated.:confused:

Reply | Quote

Replies

Try something like this. It will need a bunch of error checking but the concept is kind of straightforward.

Code:

Sub aTest()
  Dim srcDoc As Document, tgtDoc As Document
  Dim srcTable As Table, tgtTable As Table
  Dim i As Integer, strTime As String, strDesc As String

  Set srcDoc = Documents("Test daily (1).docx")
  Set tgtDoc = Documents("Test www.docx")
  Set srcTable = srcDoc.Tables(1)
  Set tgtTable = tgtDoc.Tables(1)

  For i = 2 To srcTable.Rows.Count
    strTime = srcTable.Cell(i, 1).Range.Text
    strTime = Left(strTime, Len(strTime) - 2)
    strDesc = srcTable.Cell(i, 2).Range.Text
    strDesc = Left(strDesc, Len(strDesc) - 2)
    tgtTable.Cell(i, 1).Range.ContentControls(1).Range.Text = strTime
    tgtTable.Cell(i, 5).Range.ContentControls(1).Range.Text = strDesc
  Next
End Sub

Reply | Quote

Andrew,

Thanks for the quick reply it’s exactly what I required.

With a few modifications, I got everything to work on the actual documents. There is one issue.

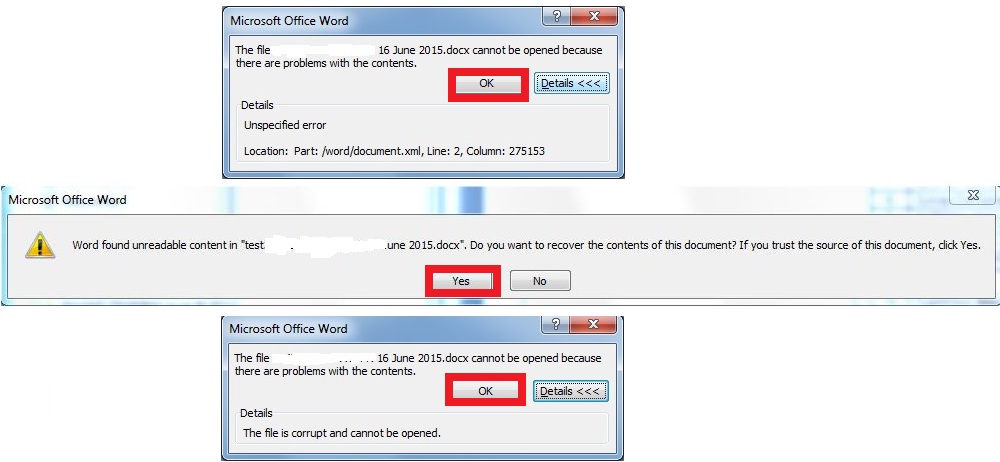

When I save the document as a .docx and try to reopen it I get the following error:

41073-Errors2

I traced down the error (basically by commenting each line out 1 by 1) to the following line of code:

Code:

    tgtTable.Cell(i, 5).Range.ContentControls(1).Range.Text = strDesc

The description field contains, letters, numbers, symbols (° ‘ “) and so forth so declaring this field as a sting should be good. I tried to edit this line of code and to find a solution online but nothing seems to work.

Can you tell me what ContentControls(1)
-Dim strDesc as Variant
-Changed tgtTable.Cell(i, 5).Range.ContentControls(1).Range.Text to …. .ContentControls(2), .ContentControls(3), .ContentControls(4), .ContentControls(5), .ContentControls(i) etc.
-Ensure Word was updated

Do you have any suggestions on how to fix this error?

Jordan

Reply | Quote

Jordan

The code might error in several obvious ways (and probably countless non-obvious ways).
1. If the target table doesn’t contain as many rows as the source table
2. If the relevant cell in the target table doesn’t contain at least one Content Control
3. If the Content Control will not accept the string you are trying to feed it

Content Controls(1) is saying the first Content Control in that range.

Now, the xml error you get when reopening the target doc implies that there is at least one content control that contains invalid content. Without seeing your actual documents it is speculation but my guess is that maybe your target document contains linked content controls and the embedded xml file now contains invalid characters such as quotes or ampersands.

Reply | Quote

Andrew,

Thanks for you assistance. But I found the error (after hours of trial and error). My source table contained a “Enter/Return” in the paragraph, which caused the file to become corrupt. From what I gathered online, contentcontrol don’t handle the “Enter/Return” key too well.

Example of my source table:

Some text, some text.
Goes here.

I changed that particular cell to one paragraph:

Some text, some text. Goes here.

Now when I save my document and try to reopen it, I no longer receive the xml/corrupt file error.

Is there a way to ignore or remove “Enter/Return” from cells?

Jordan

Reply | Quote

Andrew,

Here is the code I have right now. Not very elegant but it works. How could I make it better?

Code:

Sub Update_Wdp()

  Dim srcDoc As Document, tgtDoc As Document, Ddp As Document, Wdp As Document
  Dim srcTable As Table, tgtTable As Table, srcDate As Table, tgtDate As Table
  Dim i As Integer, J As Integer, strTime As String, strDesc As String


‘Check to see if two documents are open, Ddp and Wdp
MsgBox (“Must have Ddp & Wdp open!” & vbNewLine & vbNewLine & “Ensure Ddp is selected, not Wdp!”)
   If Documents.Count  2 Then
      MsgBox (“Must have Ddp & Wdp open!”)
   End If

‘Set word document #1 to Ddp and word document #2 to Wdp
Set Ddp = activeDocument

   If Ddp = Documents(1) Then
      Set Wdp = Documents(2)
   Else
      Set Wdp = Documents(1)
   End If

‘Set Ddp as source and Wdp target
Ddp.Activate
  Set srcDoc = Ddp
  Set tgtDoc = Wdp
  Set srcTable = srcDoc.Tables(3)
  Set tgtTable = tgtDoc.Tables(3)
  Set srcDate = srcDoc.Tables(1)
  Set tgtDate = tgtDoc.Tables(1)

‘Set Date and Clear contents in Wdp for Table 3 – Project Log and format
Wdp.Activate
Application.ScreenUpdating = False
  ‘Set Date
  tgtDate.Cell(1, 4).Range.contentControls(1).Range.Text = srcDate.Cell(2, 4).Range.Text
  ‘Clear contents in Wdp for Table 3 – Project Log and format
  For i = 2 To tgtTable.Rows.Count
    tgtTable.Cell(i, 1).Range.contentControls(1).Range.Text = “HH:MM”
    tgtTable.Cell(i, 1).Range.Font.Color = -603937025
    tgtTable.Cell(i, 2).Range.contentControls(1).Range.Text = “HH:MM”
    tgtTable.Cell(i, 2).Range.Font.Color = -603937025
    tgtTable.Cell(i, 5).Range.contentControls(1).Range.Text = “….”
    tgtTable.Cell(i, 5).Range.Font.Color = -603937025
  Next

‘Update contents in Wdp (Table 3 – Project Log) based on Ddp (Table 3 – Time and Details of Activities)
  For i = 2 To srcTable.Rows.Count
    strTime = srcTable.Cell(i, 1).Range.Text
    strTime = Left(strTime, Len(strTime) – 2)
    strDesc = srcTable.Cell(i, 2).Range.Text
    strDesc = Left(strDesc, Len(strDesc) – 2)
    tgtTable.Cell(i, 1).Range.contentControls(1).Range.Text = strTime
    tgtTable.Cell(i, 5).Range.contentControls(1).Range.Text = strDesc
  Next
‘Update contents in Wdp (Table 3 – Project Log) column 2
  For J = 3 To srcTable.Rows.Count
    strTime = srcTable.Cell(J, 1).Range.Text
    strTime = Left(strTime, Len(strTime) – 2)
    tgtTable.Cell((J – 1), 2).Range.contentControls(1).Range.Text = strTime
  Next J
‘Update last time of the day 23:59 in Wdp (Table 3 – Project Log) column 2
  For i = 2 To tgtTable.Rows.Count
    If tgtTable.Cell(i, 1).Range.contentControls(1).Range.Text = “23:59” Then
      tgtTable.Cell(i, 2).Range.contentControls(1).Range.Text = “23:59”
    End If
  Next

Application.ScreenUpdating = True


MsgBox (“NOTE: Content Controls don’t always accept the:” & vbNewLine & vbNewLine & Space(30) & “ENTER/Return key” & vbNewLine & vbNewLine & “Ensure all your text in the DdP is in ONE paragraph.”)

End Sub

Reply | Quote
